Search results for "Vacuum pumps vtl" Vuototecnica

Vacuum pumps VTL 2 and 4

Vacuum pumps VTL 2 and 4

These small vacuum pumps have a suction flow rate of 2 and 4 m3/h.
They feature a wick lubrication with oil recirculation, while the rotor, which is cantilevered-fitted on the motor shaft, allows reducing the overall dimensions to the minimum.
The motor and the pump are cooled by the motor fan (surface cooling).
The pumps are equipped with a small tank in line with the pump, which contains the lubrication oil as well as a separator filter to prevent oil mists and to reduce noise.
We strongly recommend installing a check valve and a filter on the suction inlet.Pumps VTL 2 and 4 can also be supplied with single-phase electric motor.
Product codes: VTL2 VTL4

Image zoom
top of page go down
Vacuum pumps VTL 5 and 10

Vacuum pumps VTL 5 and 10

These vacuum pumps have a suction flow rate of 5 and 10 m3.
The vacuum lubrication with oil recirculation can be adjusted via an oiler located in correspondence of the suction inlet.
The rotor is cantilevered-fitted on the motor shaft and, as a result, the overall dimensions are reduced.
The motor and the pump are cooled by the motor fan (surface cooling).
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.We strongly recommend installing a check valve and a filter on the suction inlet.
Pumps VTL 5 and 10 can also be supplied with a single-phase electric motor.
VTL5 VTL10

Image zoom
top of page go down

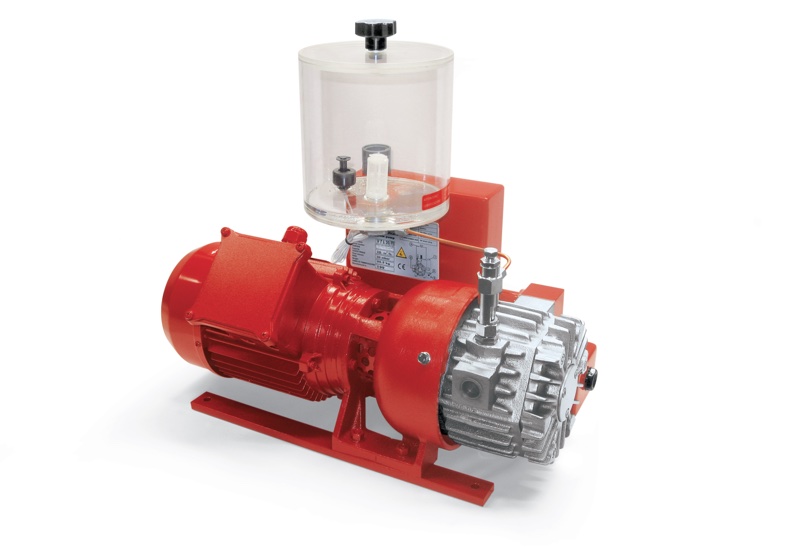

Vacuum pumps VTLP 5 and 10, with disposable lubrication

Vacuum pumps VTLP 5 and 10, with disposable lubrication


Product codes: VTLP5 VTLP10

Image zoom
top of page go down
Vacuum pumps VTL 25/FG, 30/FG and 35/FG

Vacuum pumps VTL 25/FG, 30/FG and 35/FG

These vacuum pumps have a suction flow rate of 25, 30 and 35 m3/h.
The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings.The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
We strongly recommend installing a check valve and a filter on the suction inlet.
Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTL25/FG VTL30/FG VTL35/FG

Image zoom
top of page go down

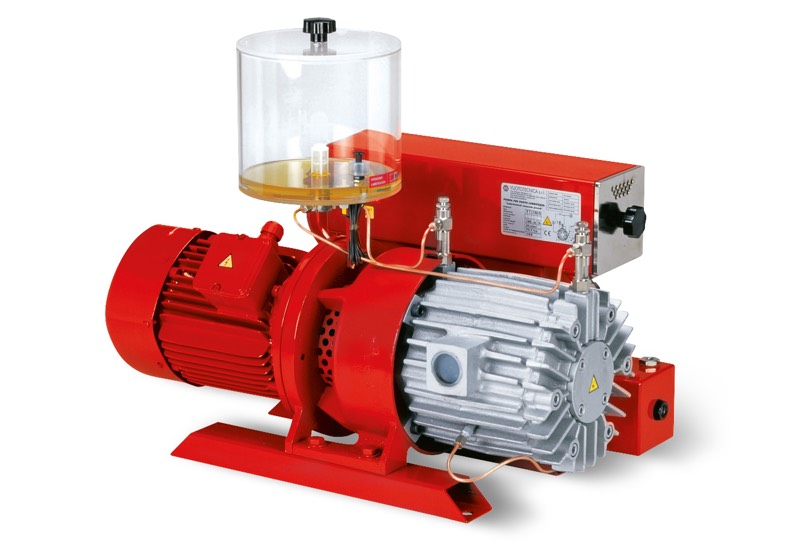

Vacuum pumps VTLP 25/FG, 30/FG and 35/FG, with disposable lubrication

Vacuum pumps VTLP 25/FG, 30/FG and 35/FG, with disposable lubrication

These vacuum pumps have a suction flow rate of 25, 30 and 35 m3/h.
The vacuum with disposable oil lubrication is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained.
The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch.
In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oilers and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could affect oil properties.
We strongly recommend installing a check valve and a filter on the suction inlet.
Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTLP25/FG VTLP30/FG VTLP35/FG

Image zoom
top of page go down
Vacuum pumps VTL 40/G1, 50/G1 and 65/G1

Vacuum pumps VTL 40/G1, 50/G1 and 65/G1

These vacuum pumps have a suction flow rate of 40, 50 and 65 m3/h.
The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
A check valve and a filter must be installed on the suction inlet.
These pumps are supplied with three-phase electric motors only.
Product codes: VTL40/G1 VTL50/G1 VTL65/G1

Image zoom
top of page go down
Vacuum pumps VTL75/G1, 90/G1 and 105/G1

Vacuum pumps VTL75/G1, 90/G1 and 105/G1

These vacuum pumps have a suction flow rate of 75, 90 and 105 m3/h.
The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
A check valve and a filter must be installed on the suction inlet.
These pumps are supplied with three-phase electric motors only.
Product codes: VTL75/G1 VTL90/G1 VTL105/G1

Image zoom
top of page go down
Vacuum pumps VTLP 40/G1, 50/G1 and 65/G1, with disposable lubrication

Vacuum pumps VTLP 40/G1, 50/G1 and 65/G1, with disposable lubrication

These vacuum pumps have a suction flow rate of 40, 50 and 65 m3/h.
The vacuum with disposable oil lubrication is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained.
The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch.
In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oilers and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could affect oil properties.A check valve and a filter must be installed on the pump suction inlet.
These pumps are supplied with three-phase electric motors only.
Product codes: VTLP40/G1 VTLP50/G1 VTLP65/G1

Image zoom
top of page go down
Vacuum pumps VTLP75/G1, 90/G1 and 105/G1, with disposable lubrication

Vacuum pumps VTLP75/G1, 90/G1 and 105/G1, with disposable lubrication

These vacuum pumps have a suction flow rate of 75, 90 and 105 m3/h.
The vacuum with disposable oil lubrication is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained.
The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch.
In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oilers and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could affect oil properties.
A check valve and a filter must be installed on the pump suction inlet.
These pumps are supplied with three-phase electric motors only.
Product codes: VTLP75/G1 VTLP90/G1 VTLP105/G1

Image zoom
top of page go down
Vacuum pumps VTL 10/FG, 15/FG and 20/FG

Vacuum pumps VTL 10/FG, 15/FG and 20/FG

These vacuum pumps have a suction flow rate of 10, 15 and 20 m3/h. The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table.
The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise. We strongly recommend installing a check valve and a filter on the suction inlet.
Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTL10/FG VTL15/FG VTL20/FG

Image zoom
top of page go down
Vacuum pumps VTLP 10/FG, 15/FG and 20/FG, with disposable lubrication

Vacuum pumps VTLP 10/FG, 15/FG and 20/FG, with disposable lubrication

These vacuum pumps have a suction flow rate of 10, 15 and 20 m3/h.
The vacuum with disposable oil lubrication is adjusted via two oilers located in correspondence of the support bearings.
The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges.
The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint.
All this allows using standard electric motors, in the shapes and sizes indicated in the table. The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump.
An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise.
A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained.
The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch.
In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oilers and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could affect oil properties.
We strongly recommend installing a check valve and a filter on the suction inlet.
Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTLP10/FG VTLP15/FG VTLP20/FG

Image zoom
