 Conveyor adjustable vacuum generators PVR 25 and PVR 50

Conveyor adjustable vacuum generators PVR 25 and PVR 50

Working principle
These vacuum generators operate based on the Venturi principle.
Unlike those previously described, the ejectors with which they are supplied are adjustable, in addition to having a considerably higher flow diameter.
This detail lets them vary the flow rate and level of vacuum of the device, without altering the level of vacuum of the supply air.
The compressed air consumption is also related to the actual performance of the vacuum generator.
Features
The special shape of these adjustable vacuum generators, as well as their straight-flow working principle allow sucking and transferring products of various nature with no interference, just like flow generators, only, unlike these, they allow overcoming much higher level differences.
They are suited for transferring powders, granulated products, sawdust, metal chips, dry or liquid food products, etc. They are also recommended for controlling vacuum cups in presence of large amounts of dust or liquids, as well as for sucking fumes, cooling mists, water and oil condensation, etc. The absence of moving parts allows for a continuous use without developing heat.
The noise level, which is quite high for this kind of equipment, can be considerably reduced with a silencer screwed on the exhaust connection.
They do not require electricity, therefore, they can even be used in work environments with hazardous environments where an ignition source would be dangerous.
Available in anodised aluminium and stainless steel.
Thanks to all these features, a good filtration of the compressed air supply will be sufficient to make these devices fully maintenance-free.
Product codes: PVR25 PVR50

Image zoom
top of page go down
Accessories and spare parts for vacuum generator PVR 25 MS

Accessories and spare parts for vacuum generator PVR 25 MS

- Digital micro vacuum switch
- Vacuum gauge
- Threaded adapter for suction mouth item 00 15 397
- Safety protection for exhaust silencer SSX 1/4” item 00 15 341
Product codes: 120511P 090315 0015397 0015341

8.118
CAD files on TraceParts
Image zoom
top of page go down

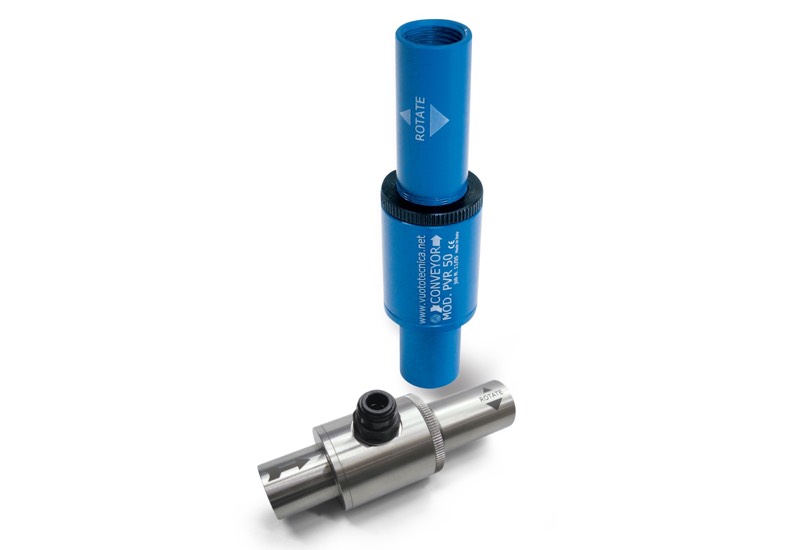

Adjustable conveyor vacuum generators PVR 100 and PVR 200

Adjustable conveyor vacuum generators PVR 100 and PVR 200


Product codes: PVR100 PVR200

Image zoom
top of page go down
Cartridge vacuum generator PVR 3 OT

Cartridge vacuum generator PVR 3 OT

Also the construction of this cartridge vacuum generator was necessary in order to meet the demand for ever smaller and more performing devices in the packaging sector.
The compressed air supply pressure is between 1 and 3 bar, while the maximum level of vacuum is -52 KPa, with a flow rate of 2.6 m3/h.
Also the shape of these generators, like the previous ones described, allows for the suction of dust and small processing waste without clogging problems.
They are made of brass as standard, but upon request they can also be supplied in different metals.
Product code: PVR3OT

8.116
CAD files on TraceParts
Image zoom
top of page go down
Accessories for conveyor adjustable vacuum generators

Accessories for conveyor adjustable vacuum generators

The noise level of Conveyor adjustable vacuum generators, which is always quite high, can be considerably mitigated by a suitable silencer screwed onto the air exhaust connection.
SSX series silencers can be supplied upon specific request. These are suitable for all Conveyor vacuum generators.
The table below shows the codes of the silencers related to the various vacuum generators.
Product codes: PVR25 PVR50 PVR100 PVR200 SSX1/4 SSX1/2 SSX3/4 SSX1 2SSX1/4 2SSX1/2 2SSX3/4 2SSX1

8.119
CAD files on TraceParts
Image zoom
top of page go down
Cartridge vacuum generators PVR 1 and PVR 4

Cartridge vacuum generators PVR 1 and PVR 4

These small cartridge vacuum generators can be integrated directly into the gripping elements of packaging machines.
The maximum yield is offered at low compressed air pressures of 2-3 bar, providing levels of vacuums up to -72 KPa and flow rates between 1 and 4 m3/h.
Their particular shape permits the suction of dust or small processing residues, without creating clogging problems.
They are made as standard in anodised aluminium but can also be supplied in stainless steel, upon request.
Product codes: PVR1 PVR4

8.115
CAD files on TraceParts
Image zoom
top of page go down
Conveyor vacuum generator PVR 25 MS, with support for fastening to vacuum cups

Conveyor vacuum generator PVR 25 MS, with support for fastening to vacuum cups

The particular shape of this rectilinear flow vacuum generator allows for the supply of vacuum cups, especially in the presence of abundant quantities of dust, liquids, sawdust, of various origins, and shavings, without interference. It can reach a level of vacuum of -70KPa, a suction flow rate of about 10 m3/h, with a supply pressure of 3 bar.
The support it is equipped with allows it to be fixed to flat vacuum cups, starting from Ø 200 mm, while a special adapter, available upon request, allows the generator to be fixed at a distance. A "free-flow" silencer is installed on the intake air exhaust with high sound reduction, equipped with appropriate safety protection to prevent the dispersion of the sucked solid impurities in the work environment.
Also upon request, it is possible to supply a digital micro vacuum switch, item 12 05 11 P, for checking the level of vacuum inside the vacuum cup, and a vacuum gauge item 09 03 15, for direct reading of the level.
A good filtration of the compressed air supply will be sufficient to make these devices fully maintenance-free. Their use is recommended in particular on vacuum cups for gripping marble and granite, bricks, rusty metal sheets, rough wooden boards and anything else with especially dirty gripping surfaces.
Product code: PVR25MS
