Search results for "vacuum switch" Vuototecnica

Mini pneumatic vacuum switches

Mini pneumatic vacuum switches

These extremely compact vacuum switches give or remove a pneumatic signal, depending on the model, when a certain adjustable level of vacuum is reached.
The pressure differential existing between the set maximum value and that of the signal recovery at rest is not adjustable.
They are particularly suited for controlling vacuum generators and for activating pneumatic valves.
Product codes: 120130 120230

3.06
CAD files on TraceParts
Image zoom
top of page go down
Mini electromechanical vacuum switch

Mini electromechanical vacuum switch

This extremely compact vacuum switch gives an electric signal when a certain adjustable level of vacuum is reached.
The pressure differential existing between the set maximum value and the value of reset of the rest signal is 50- 60 mbar and it is not adjustable.
They are particularly suited when an electrical signal is needed when a certain level of vacuum is reached, for safety, for starting a cycle, for checking the cup grip, etc.
Product code: 120210

3.07
CAD files on TraceParts
Image zoom
top of page go down
Micro digital vacuum switches

Micro digital vacuum switches

If accurately calibrated and compensated for temperatures, these small devices are able to give very precise digital signals to the set maximum measuring value.
The switching point, which is within the scale value, can be easily programmed by means of an adjustment screw located on the upper part of the device. A red LED near the screw indicates the digital output signal commutation status. The pressure differential (hysteresis) between the set maximum value and the value of reset of the rest signal is 2% of the set value and cannot be adjusted.
They are composed of a polycarbonate enclosure, which includes the sensor and the electric circuit, and of a coupler or a small aluminium manifold with the vacuum connections.
Item 12 05 10 can also be rotated freely to place the display in the desired position, without having to unscrew it from the vacuum connection. The vacuum connection can be carried out via male or female M5 connectors, while the electrical connection is made via a three-connector cable with which they are equipped. Mini digital vacuum switches are suited for controlling dry air and non-corrosive gasses. They are recommended in all those cases that require a signal when a certain level of vacuum is reached, for safety, for starting a cycle, for checking the cup grip, etc.
Product codes: 120510P 120510N 120511P 120511N

Image zoom
top of page go down
Analogue vacuum switch

Analogue vacuum switch

These compact and extremely light switches come enclosed in a sturdy ABS casing; these features allow their installation on the machine and close to the application. If accurately calibrated, these analogue switches provide very precise measurements values.
The adjustment range is from 0 to -1 bar and can be interfaced with external logics via an analogue output from 1 to 5 Volts and a digital PNP output, configurable via Teach-In.
The switching point, as well as the hysteresis from 0 to 100% of the set value, can be easily programmed via push buttons located on the control panel; the two two-colour LEDs on the control panel signal the commutation status and the error code, if any.
These devices can be rotated freely to place the display in the desired position, without having to unscrew them from the vacuum connection.
The vacuum connection is dual threaded: male G 1/8” or female M5. The electrical connection is an M8 4-pin threaded plug and upon request the connection cable is available in PUR, with an axial or radial connector.
These vacuum switches are suited for measuring and controlling dry air and non-corrosive gasses.
They are recommended in all those cases that require a measurement and commutation to be installed on safety or energy-saving devices, on systems for optimising the work cycle time and in circuit level of vacuum adjustment circuits.
Product codes: 120710

CAD files on TraceParts
Image zoom
top of page go down
Digital vacuum switches

Digital vacuum switches

Changes the shape of these digital vacuum switches with respect to those previously described, from cylindrical to parallelepiped. However, the container in which they are enclosed remains in ABS and is also especially compact and extremely light to allow for its installation on board automatisms and near use.
These carefully calibrated devices are able to provide very accurate measurement values. The detected values are shown on the display, making it unnecessary to use a vacuum gauge.
The panel includes two LED indicators, one green and one red, which indicate the switching status of the two digital output signals. The switching outputs are completely independent. The switching points within the scale values, including hysteresis from 0 to 100% of the set value, are easily programmable via the buttons located on the control panel.
Other additional functions can be configured, such as the comparisons between values, NO and NC contacts, the choice of the units of measure, the blocking of functions and programmed values, etc.
The vacuum connection can be made by means of a G 1/8” male or M5 female double threading connection.
Electrical connection for item 12 30 10 is push-in with a M8-4 pin threaded jack. A connection cable can be provided in PUR upon request with corresponding axial or radial connector.
Instead, item 12 30 10 A already has an integrated PUR, 2-metre long connection cable. The adjustment range of vacuum switch 12 30 10 is from 0 to -1 bar, with two digital PNP outputs that can be set by means of Teach-in. The adjustment range of item 12 30 10 A, while it is also between 0 and -1 bar, can instead be interfaced with external logics via a 1 to 5 volt analogue output and two digital PNP outputs.
This series of digital vacuum switches is suitable for measuring and control of dry air and non-corrosive gases. These are recommended in all cases where maximum and minimum value signalling is required, set for safety reasons, in order to start a work cycle, to control vacuum cup gripping, and so on. In addition, with the hysteresis function, it is possible to manage the compressed air supply to the vacuum generators, allowing for considerable energy savings.
Product codes: 123010A 123010

CAD files on TraceParts
Image zoom
top of page go down
Multi-function modules with built-in vacuum solenoid valves

Multi-function modules with built-in vacuum solenoid valves

The needs of technical designers in the packaging sector and in the automation sector in general to have more vacuum combined with different functions in the smallest possible space has led us to design and implement this new series of multi-function modules.
Each module has two internal solenoid valves built inside it. Their ducts house the seats for the flow control valves, which can be operated externally by means of special knobs. Various connections made at different points allow for connection of the module to instruments for reading and checking the level of vacuum, such as vacuum gauges, vacuum switches, transducers, etc.
There are three modules currently available:
- Module A: the basic module with two integrated 1”1/2 and 1” solenoid valves, two flow regulators and several additional connections.
- Module B: with two integrated 1/2 "and 1" solenoid valves and two flow regulators. Can be combined with modules A and C.
- Module C: module with two integrated 1/2” solenoid valves, a flow regulator and an additional connection.
Can be combined with module A or B.
The combination of modules A, B and C, feasible using special stainless steel tie-rods, allows for the application of various functions from a single source of vacuum, as well as allowing for the elimination of numerous pipes and fittings, often causing leaks. The multi-function modules are supplied already tested to a guaranteed final level of vacuum of 0.5 mbar and perfectly sealed.
The technical characteristics are those of the pneumatically actuated three-way vacuum solenoid valves:
- Servo-control pressure: 6-7 bar; 4-6 bar for version LP, with non-lubricated compressed air, 5 micron filtration, according to standard ISO 8573-1 class 4
- Operating pressure: from 0.5 to 3000 absolute mbar
- Electric coils: fully plastic-coated in synthetic resin, watertight, insulation class F (up to 155°C) as per standard VDE, with 3 mm two-terminal electrical connections for connectors in compliance with EN 175301-803
- Protection degree IP 54; IP 65 with connector inserted.
- Tolerance permitted on the nominal voltage value: ± 10%
- Electrical power of the coils: from 1 to 2 W, depending on the electrical voltage
- Temperature of suctioned fluid: from – 5 to + 60°C
The ideal use of these multi-function modules is on vacuum thermoformers and vacuum thermo-welders, but they are also widely used on packaging and filling machines in the packaging sector and in all those cases where it is necessary to manage the vacuum at different points and times. Upon request, the modules can be customised and implemented with solenoid valves up to 3” gas. Contact our technical department for further information.

Image zoom
top of page go down
Mini pump sets – General description

Mini pump sets – General description

Mini pump sets are small independent vacuum-producing units with reduced size.
They are composed of:
- A small welded sheet steel tank with perfect vacuum seal.
- A low-flow rate dry or lubricated rotating vane vacuum pump.
- A mini digital vacuum switch for adjusting the maximum level of vacuum.
- A vacuum gauge for reading the level of vacuum.
- Switchgear enclosed in a special casing.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
The level of vacuum, preset via the digital vacuum switch is automatically maintained in the tank.
Mini pump sets can also be supplied with single-phase or DC electric motors and they are suited for equipping fixed or mobile working units that require vacuum, such as:
- Trolleys with vacuum cups for fixing and transporting glass and crystals.
- Vacuum clamping systems for ski maintenance, marble processing and for polishing copper, pewter or silver objects.
- Hoists with vacuum cups for lifting television sets and household appliances for glass installation in door and window frames, for laying ceramic tiles, for feeding sheet metal into presses, etc.

7.62
CAD files on TraceParts
Image zoom
top of page go down
Horizontal pump sets – General description

Horizontal pump sets – General description

As a standard, these pump sets are built with various capacities and they are composed of:
- A horizontal welded sheet steel tank with perfect vacuum seal.
- A rotary vane vacuum pump to be selected according to the required suctionflow rate and level of vacuum.
- A digital vacuum switch for adjusting the level of vacuum within which to operate.
- A vacuum gauge for a direct reading of the level of vacuum in the tank.
- A switchgear enclosed in a special plastic casing for tanks from 25 to 50 litresand in a watertight metal casing for tanks of 100 litres upwards.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
The level of vacuum, preset via the digital vacuum switch is automatically maintained in the tank.
The pump operation can be both continuous or automatic.
Pump sets are normally used for handling particularly heavy or valuable loads since, in case of electricity failure, they allow the vacuum cups to maintain the grip for a certain amount of time, according to the tank capacity.
These pump sets are recommended for multi-point applications, to centralise vacuum.
These pump sets offer many advantages in energy consumption, since the pump operates only when required by the machine.

7.66
CAD files on TraceParts
Image zoom
top of page go down
Vertical pump sets – General description

Vertical pump sets – General description

As a standard, these pump sets are built with various capacities and they are composed of:
- A vertical welded sheet steel tank with perfect vacuum seal.
- A rotating vane vacuum pump to be selected according to the required suction capacity and vacuum degree.
- A vacuum switch for adjusting the vacuum level within which to operate.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- A switchgear enclosed in a special watertight metal casing.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
The level of vacuum, preset via the mini vacuum switch is automatically maintained in the tank. The pump operation can be both continuous or automatic.
The level of vacuum, preset via the mini vacuum switch is automatically maintained in the tank. The pump operation can be both continuous or automatic. These pump sets are normally used for interconnecting several vacuum-operated machines and, for safety reasons, for vacuum handlers since, in case of electricity failure, they allow the vacuum cups to maintain the grip for an amount of time proportional to the tank capacity.
As for energy consumption, in both cases these pump sets offer many advantages, since the pump operates only to restore vacuum in the tank within the preset values and its interventions depend exclusively on the quantity of air that is actually sucked at the service.

7.74
CAD files on TraceParts
Image zoom
top of page go down
Mini pump set switchgear

Mini pump set switchgear

The mini pump set switchgear is enclosed in a special plastic casing. It can automatically manage a vacuum pump with a maximum power of 5.5 KW with AC and can also maintain the level of vacuum in the tank, set with the digital vacuum switch installed on the control panel.
It is equipped with a remote control switch with thermal protection, a fuse, digital vacuum switch, a transformer for low voltage auxiliary command, a selector for automatic or manual pump operation, an emergency button and signalling lamps.
Product codes: DO0698V DO0697V

7.88
CAD files on TraceParts
Image zoom
top of page go down
Switchgear for pump sets with one pump

Switchgear for pump sets with one pump

The pump set switchgear is enclosed in a special watertight metal casing and can manage a vacuum pump with a power up to 7.5 KW as well as maintain the level of vacuum in the tank, set with the digital vacuum switch.
It is equipped with a remote control switch with thermal protection, fuses, a transformer for low voltage auxiliary command power supply, a line switch, a changeover switch for the automatic or manual pump operation, an easily-programmable digital vacuum switch suitable for setting and controlling all vacuum functions, an hour-counter for measuring the actual pump operation time and signalling lamps.
Product codes: DO10098V DO10097V

7.88
CAD files on TraceParts
Image zoom
top of page go down
Switchgear for pump sets with two pumps

Switchgear for pump sets with two pumps

The pump set switchgear is enclosed in a special watertight metal casing and can manage two vacuum pumps, each with a power up to 7.5 KW as well as maintain the level of vacuum in the tank, set with the digital vacuum switch.
It is equipped with two remote control switches with thermal protection, fuses, a transformer for low voltage auxiliary command power supply, a line switch, a changeover switches for the automatic or manual pump operation, an easily-programmable digital vacuum switch suitable for setting and controlling all vacuum functions, two hour-counters for measuring the actual pump operation time and signalling lamps.
Product codes: D2V15095V

7.89
CAD files on TraceParts
Image zoom
top of page go down
Switchgear for safety pump set with two pumps

Switchgear for safety pump set with two pumps

The pump set switchgear, is enclosed in a special watertight metal casing andautomatically manages two vacuum pumps, each with a power up to 7.5 KW and maintains the level of vacuum in the tank, set with the two easily-programmable digital vacuum switches, suitable for setting and controlling all vacuum functions.
It is equipped with two remote control switches with thermal protection, fuses, a transformer for low voltage auxiliary command power supply, a line switch, a changeover switches for the automatic or manual pump operation, two digital vacuum switches, two hour-counters for measuring the actual pump operation time, an alarm siren with acoustic and lit signalling, a key selector for any necessary exclusion of the siren, test buttons and signalling lamps.
The switchgear is normally provides for the operation of one pump with subsequent automatic insertion of the second one for larger consumptions and when, for whatever reason, the plant level of vacuum goes under the preset value.
The automatic timed inverter precisely alternates priority pump start-up of the services so that they are subjected to equal mechanical wear. The switchboard and remote alarm systems operate when the plant level of vacuum is below the set safety value.
Product codes: DSO30097V

7.89
CAD files on TraceParts
Image zoom
top of page go down
Switchgear for safety pump sets with three pumps

Switchgear for safety pump sets with three pumps

The pump set switchgear, is enclosed in a special watertight metal casing andautomatically manages three vacuum pumps, each with a power up to 7.5 KW and maintains the level of vacuum in the tank, set with the two easily-programmable digital vacuum switches, suitable for setting and controlling all vacuum functions.
It is equipped with three remote control switches with thermal protection, fuses, a transformer for low voltage auxiliary command power supply, a line switch, a changeover switches for the automatic or manual pump operation, three digital vacuum switches, two hour-counters for measuring the actual pump operation time, an alarm siren with acoustic and lit signalling, a key selector for any necessary exclusion of the siren, test buttons and signalling lamps. The switchgear is normally provides for the operation of one pump with subsequent automatic insertion of the other two for larger consumptions and when, for whatever reason, the plant level of vacuum goes under the preset value.
The automatic timed inverter precisely alternates priority pump start-up of the services so that they are subjected to equal mechanical wear. The switchboard and remote alarm systems operate when the plant level of vacuum is below the set safety value.
Product codes: DSO30098V

7.90
CAD files on TraceParts
Image zoom
top of page go down
Switchgear for safety pump set with four pumps

Switchgear for safety pump set with four pumps

The safety pump set switchgear is enclosed in a special watertight metal casing and it automatically manages four vacuum pumps, each with a power up to 7.5 KW, and maintains the level of vacuum in the tank, set with the two easily-programmable digital vacuum switches, suitable for setting and controlling all vacuum functions. It is equipped with four remote control switches with thermal protection, fuses, a transformer for low voltage auxiliary command power supply, a line switch, a changeover switches for the automatic or manual pump operation, two digital vacuum switches, four hour-counters for measuring the actual pump operation time, an alarm siren with acoustic and lit signalling, a key selector for any necessary exclusion of the siren, test buttons and signalling lamps.
These switchgears normally provide for the operation of two pumps and the subsequent automatic insertion of the other two for larger consumptions and when, for whatever reason, the plant level of vacuum goes below the preset value.
The automatic timed inverter precisely alternates priority pump start-up of the services so that they are subjected to equal mechanical wear.
The switchboard and remote alarm systems operate when the plant level of vacuum is below the set safety value
Product code: DSV200099V

7.90
CAD files on TraceParts
Image zoom
top of page go down
Switchgear equipped with touch screen operator panel and plc for pump sets and safety pump sets with two or more pump

Switchgear equipped with touch screen operator panel and plc for pump sets and safety pump sets with two or more pump

The new electrical equipment consists of a touch screen, which is a special electronic device that is the result of combining a screen and a digitizer that allow the user to interact with a graphical interface using their fingers or specific objects.
The touch screen operator panels installed on our Pump sets are human machine interface systems, or rather devices that allow people to control our equipment very easily.
The electrical panel contains command and control equipment, collects the digital signals coming from the vacuum switch to power the vacuum pumps when necessary and is designed for a single-phase 230 Vac 50 Hz and three-phase 400 Vac 50 Hz power supply with an IP 54 protection rating.
Inside is a PLC that manages all the control logics for manual and automatic operation.
Product codes: DO10098VPLC DO10097VPLC DSO30097VPLC

Image zoom
top of page go down
Accessories for single-stage vacuum generators - Pneumatic coaxial shutter valves

Accessories for single-stage vacuum generators - Pneumatic coaxial shutter valves

The function of these solenoid valves is to intercept the compressed air supply to the vacuum generators. Interception through an original coaxial shutter allows the supply of large quantities of air, thus ensuring greater gripping speed of the vacuum cups.
They are composed of an anodised aluminium body with an integrated coaxial shutter, pneumatically operated by a micro solenoid valve with low absorption electric coil, capable of managing operating pressures between 1.5 and 7 bar.
They can be controlled via vacuum switches or simple electrical switches.
Thanks to their compactness, it is also possible to install them directly on the vacuum generators, thus eliminating unnecessary pipes and negative volumes.
Product codes: VPE00NCV24CC VPE00NOV24CC VPE01NCV24CC VPE01NOV24CC VPE02NCV24CC VPE02NOV24CC VPE03NCV24CC VPE03NOV24CC VPE04NCV24CC VPE04NOV24CC

Image zoom
top of page go down
Single-stage vacuum generators PVP 7 SX / SXLP, PVP 14 SX / SXLP and PVP 18 SX / SXLP

Single-stage vacuum generators PVP 7 SX / SXLP, PVP 14 SX / SXLP and PVP 18 SX / SXLP

Vacuum generators PVP ... SX/SXLP, operate making use of the previously described Venturi principle.
A special new generation silencer installed on them makes them very silent and, thanks to its shape, prevents them from becoming clogged, also allowing the suction of saturated fluids of water condensates or oils, mixed with fine or impalpable powders.
They are supplied as standard with a vacuum gauge for reading the level of vacuum. An additional connection on the body of the generator allows the installation of a vacuum switch for signalling the level of vacuum, or of a pneumatic solenoid valve for a quick restoration of the atmospheric pressure of use. They are fully made with anodised aluminium, with stainless steel ejectors and screws.
These vacuum generators can be used for connecting one or more vacuum cups or equipment with flow rate requirements within the shown values and can operate in particularly dusty or damp environments. Available with suction rates between 8.3 and 18 m3/h and supply pressure 4-6 bar, for items SX and 1-3 bar for items SXLP.
Product codes: PVP7SX PVP14SX PVP18SX PVP7SXLP PVP14SXLP PVP18SXLP

Image zoom
top of page go down
Accessories and spare parts for multi-stage and multi-function vacuum generators, series MSVE

Accessories and spare parts for multi-stage and multi-function vacuum generators, series MSVE

- Cable set with built-in energy saving device
- Connector
- Cable with axial connector
- Cable with radial connector
- NC micro supply solenoid valve
- NC supply and blowing micro solenoid valve
- Digital vacuum switch
Product codes: 0015203 0015157 001220 001221 0007304 0015447 123010

Image zoom
top of page go down
VACUMANAGER VM series power supply unit

VACUMANAGER VM series power supply unit

VACUMANAGER VM series units are integrated electro-pneumatic circuits designed to supply and manage single-stage and multi-stage vacuum generators.
VM units house the following in an anodised body/distributor machined from billet aluminium:
- 1 Digital vacuum switch with display
- 1 Compressed air supply valve
- 1 Blow off valve
- 1 Flow regulator for the blow off valve
A compact electro-pneumatic control circuit that incorporates all components for the management of vacuum and blow off generation in a handling system equipped with vacuum cups and powered by pneumatic vacuum generators (single-stage or multi-stage).
In combination with the Vuototecnica Energy Saving cables, these represent the best solution in terms of energy efficiency, as they limit the consumption of the compressed air supplying the pneumatic vacuum generators to the time strictly necessary to empty the vacuum cups.
This energy-saving solution is even more valued and appreciated in all vacuum cup handling operations for products with excellent sealing or with micro-porosity (metal sheets, glass, wood or plastic veneered panels, etc.).
Vuototecnica also recommends VM units for handling all Octopus gripping systems equipped with pneumatic vacuum generators and shut-off valves.
Product codes: VM01 VM03

8.38.1
CAD files on TraceParts
Image zoom
top of page go down
Accessories and spare parts for VACUMANAGER VM series power supply unit

Accessories and spare parts for VACUMANAGER VM series power supply unit

- Cable set with built-in energy saving device
- Cable with axial connector
- Cable with radial connector
- Connector
- NO micro supply solenoid valve
- NC supply and blowing micro solenoid valve
- Digital vacuum switch
Product codes: 0015203 0015202 001220 001221 0015157 0007304 0015447 123010

Image zoom
top of page go down
Multi-stage and multi-function vacuum generators series MVG - General description

Multi-stage and multi-function vacuum generators series MVG - General description

These generators are true independent vacuum units that can control an entire vacuum gripping system. Their distinctive features are their compact size and great suction flow rate.
They are composed of a mono-block anodised aluminium structure onto which are assembled:
- A modular and silenced multi-stage vacuum generator.
- A micro solenoid valve for supplying compressed air to the generator.
- A micro solenoid valve for blowing the exhaust compressed air.
- An adjustable flow regulator for dosing the exhaust air.
- A unidirectional check valve, located on the suction inlet, for maintaining the vacuum in case of electricity failure.
- A digital vacuum switch provided with display and commutation LEDs, for managing the compressed air supply and for signalling the safety cycle start-up.
- An anodised aluminium manifold provided with vacuum connections and a built-in filter easy to inspect.
By activating the compressed air power micro solenoid valve, the generator creates vacuum for use. As soon as the preset maximum value is reached, the digital vacuum switch acts on the electric coil of the micro solenoid valve and stops the air supply, reactivating it when the vacuum falls below the minimum level.
Besides maintaining the level of vacuum within set safety values (hysteresis), this modulation allows for considerable compressed air savings.
A second signal from the vacuum switch (also adjustable and independent with respect to the first) can be used to start the cycle when the level of vacuum reached is suitable for use. Once the work cycle is completed, the micro solenoid valve that supplies air to the generator is deactivated while, at the same time, the ejection solenoid valve is activated for quick restoration of the atmospheric pressure upon use.
The multi-function MVG vacuum generators can be installed in any position and are suitable for suction gripping systems, handling metal sheets, glass, marble, ceramics, plastic, cardboard, wood, etc. and, in particular, for the industrial robotics sector, where equipment with excellent performance but with limited weight and bulk are increasingly required.

8.61
CAD files on TraceParts
Image zoom
top of page go down
Accessories and spare parts for multi-stage and multi-function vacuum generators, series MVG

Accessories and spare parts for multi-stage and multi-function vacuum generators, series MVG

- Cable set with built-in energy saving device
- Connector
- Cable with axial connector
- Cable with radial connector
- NO micro supply solenoid valve
- NC supply and blowing micro solenoid valve
- Replacement plate for micro blowing solenoid valve
- Digital vacuum switch
Product codes: 0015202 0015203 0015157 001220 001221 0015154 0015436 0015437 0015178 121010

CAD files on TraceParts
Image zoom
top of page go down

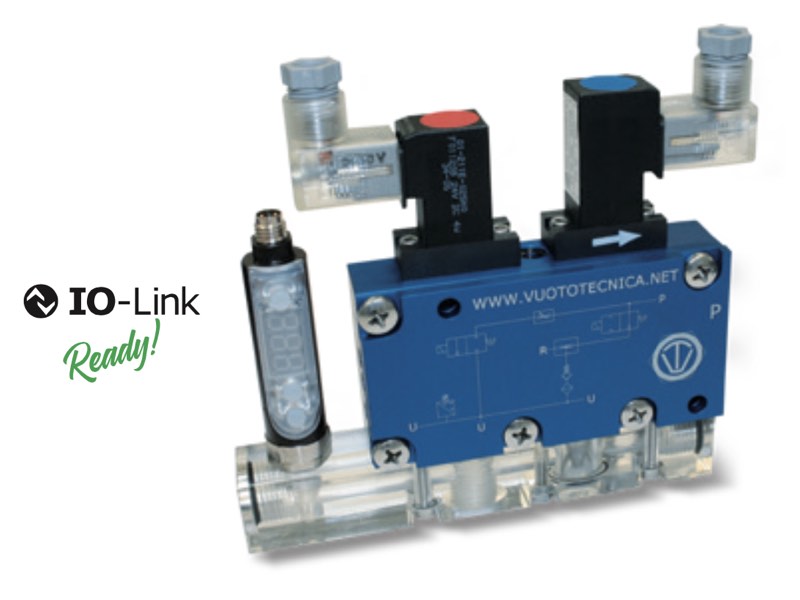

Multi-stage, multi-function and modular vacuum generators, series GVMM – General description

Multi-stage, multi-function and modular vacuum generators, series GVMM – General description

Modular multi-function vacuum generators are true independent vacuum units that offer an entire vacuum control system.
They feature a reduced thickness and weight compared to their suction flow rate and they have been designed to be assembled with screws to one or more intermediate modules MI. The original internal connection system for the compressed air supply allows communication with no need for external manifolds.
This modular system allows increasing the number of independent vacuum units according to the requirements. In fact, you can order a multi-function vacuum generator and the intermediate modules with the desired capacities, already assembled, or you can assemble one or more intermediate modules to the GVMM generator that has already been installed on the machine, without having to make particular modifications. GVMM vacuum generators are composed of an anodised aluminium mono-block with lid, inside of which the silenced multiple ejectors are installed and the vacuum chamber and the compressed air supply connection are contained.
The following are instead installed on the outside:
- A micro solenoid valve for supplying compressed air to the generator.
- A micro solenoid valve for blowing the exhaust compressed air.
- An adjustable flow regulator for dosing the exhaust air.
- A digital vacuum switch provided with display and commutation LEDs, for managing the compressed air supply and for signalling the safety cycle start-up.
- An anodised aluminium or transparent Plexiglass manifold provided with vacuum connections with built-in suction filter, easy to inspect, and a check valve for maintaining the vacuum in case of electricity or compressed air failure.
By activating the compressed air power micro solenoid valve, the generator creates vacuum for use. As soon as the preset maximum value is reached, the digital vacuum switch acts on the electric coil of the micro solenoid valve and stops the air supply, reactivating it when the vacuum falls below the minimum level.Besides maintaining the level of vacuum within set safety values (hysteresis), this modulation allows for considerable compressed air savings.
A second signal from the vacuum switch (also adjustable and independent with respect to the first) can be used to start the cycle when the level of vacuum reached is suitable for use. Once the work cycle is completed, the micro solenoid valve that supplies air to the generator is deactivated while, at the same time, the ejection solenoid valve is activated for quick restoration of the atmospheric pressure upon use.
GVMM multi-function vacuum generators can be installed in any position and are suited for interconnecting vacuum gripping systems for handling sheet steel, glass, marble, ceramic, plastic, cardboard, wood, etc., and, in particular, for the industrial robotics sector which requires equipment with excellent performance and several independent vacuum units for controlling several applications but with reduced size and weight.

8.69
CAD files on TraceParts
Image zoom
top of page go down
Accessories and spare parts for vacuum generators and modules series GVMM and MI

Accessories and spare parts for vacuum generators and modules series GVMM and MI

- Cable set with built-in energy saving device
- Connector
- Cable with axial connector
- Cable with radial connector
- Digital vacuum switch
- NO micro solenoid valve
- NC supply and blowing micro solenoid valve
- Plexiglass manifolds
- Aluminium manifolds
- Support
Product codes: 0015202 0015203 0015157 001220 001221 121010 0015176 0015175 0015171 0015188 0015174 0015187 0015306

CAD files on TraceParts
Image zoom
top of page go down
Single-stage and multi-function vacuum generators series AVG – General information

Single-stage and multi-function vacuum generators series AVG – General information

These generators are independent vacuum units capable of driving a vacuum gripping system They have been specially designed for the AUTOMOTIVE sector and they are equipped with single ejectors that, given the same flow rate as the multi-ejector generators, allow for a quicker grip.
They are provided as standard with a built-in pneumatic energy-saving device.
They are composed of an anodised aluminium mono-block structure, inside of which are installed the ejectors, the servo-controlled slide valve for the compressed air supply and are contained the vacuum chambers as well as the various connections.
The following are instead installed on the outside:
- A bistable impulse solenoid valve for controlling the slide valve.
- A solenoid valve for blowing the ejected compressed air.
- A flow regulator for dosing the ejected compressed air.
- Two silencers for removing noise from the ejected air.
- An aluminium manifold provided with vacuum connections with built-in:
• A pneumatic vacuum switch for managing the compressed air supply according to the set level of vacuum (energy saving).
• A check valve for maintaining the vacuum in case of electricity or compressed air failure.
• A suction filter, easy to inspect through the transparent polycarbonate lid.
OPERATION
By providing an electric impulse to the two-position solenoid valve, the compressed air supply slide valve will be activated and vacuum will be created at the application. Once the preset maximum value has been reached, the pneumatic vacuum switch acts on the servo-controlled valve and interrupts the compressed air supply, restoring it when the value returns below the minimum value.
Besides maintaining the level of vacuum within preset safety values, this modulation also allows a considerable saving of compressed air and occurs even in the absence of electricity. Once the work cycle is completed, the power supply solenoid valve is deactivated by means of an electrical pulse while, at the same time, the ejection solenoid valve is activated for quick restoration of the atmospheric pressure of use.
AVG vacuum generators are fitted for the installation of a digital vacuum switch. Also these vacuum generators can be installed in any position.
SECTORS OF USE
AVG vacuum generators are suitable for suction gripping systems, for the handling of metal sheets, glass, marble, ceramics, plastic, cardboard, wood, etc. and, in particular, for the AUTOMOTIVE sector, where equipment with excellent performance and limited size and weight are increasingly required.

8.46
CAD files on TraceParts
Image zoom
top of page go down
Accessories and spare parts for single-stage and multi-function vacuum generators, series AVG

Accessories and spare parts for single-stage and multi-function vacuum generators, series AVG

- Digital micro vacuum switch
- Connector
- Bistable solenoid valve
- NC solenoid valve
- Silencer
Product codes: 120511 0015157 0015297 0015175 SSX3/4R

Image zoom
top of page go down
Accessories for vacuum generators PVP 25 MDX / MDXLP ÷ 75 MDX / MDXLP

Accessories for vacuum generators PVP 25 MDX / MDXLP ÷ 75 MDX / MDXLP

- Mini pneumatic vacuum switch
- Coaxial shutter servo-controlled supply valve
- Membrane check valve
- Flexible hose kit with fittings
- Complete kit for energy saving device ES
Product codes: 120230X 070171 070271 100420 100520 0015308 ES01 ES02

Image zoom
top of page go down
Multi-stage and modular vacuum generators PVP 150 MD / MDLP ÷ 750 MD / MDLP - General description

Multi-stage and modular vacuum generators PVP 150 MD / MDLP ÷ 750 MD / MDLP - General description

The special shape of these vacuum generators has allowed obtaining great suction capacities in very limited overall dimensions.
The new design stainless steel ejectors are assembled on modular frames; the overlapping of one or more frames defines the flow rate of the generators. They are supplied with a flow rate ranging from 85 e 900 m3/h and a maximum level of vacuum of -90KPa. The supply pressure goes from 4-6 bar for MD items and from 1-3 bar for MDLP items. Level of vacuum and flow rate can be adjusted according to the supply air pressure. They are fully made with anodised aluminium.
The sealing gaskets and disc valves are EPDM as standard, but can be supplied in VITON® upon request. Also upon request, an energy saving kit for the compressed air ES (Energy Saving System) can be supplied. It is composed of a pneumatic coaxial shutter valve for supply of the compressed air, an integrated pneumatic vacuum switch, a reed valve kit for the check system and a flexible tube with quick fitting to monitor and transmit the value of the level of vacuum to the vacuum switch.
Perfectly soundproofed with silencers built into all generators, offering extremely quiet operation.

8.102
CAD files on TraceParts
Image zoom
top of page go down
Accessories and spare parts for vacuum generator PVR 25 MS

Accessories and spare parts for vacuum generator PVR 25 MS

- Digital micro vacuum switch
- Vacuum gauge
- Threaded adapter for suction mouth item 00 15 397
- Safety protection for exhaust silencer SSX 1/4” item 00 15 341
Product codes: 120511P 090315 0015397 0015341

8.118
CAD files on TraceParts
Image zoom
top of page go down
Mini pneumatic pump sets DOP 06 and DOP 10

Mini pneumatic pump sets DOP 06 and DOP 10

Mini pneumatic pump sets are small independent vacuum-producing units, exclusively supplied with compressed air, with reduced size.
They are composed of:
- A small welded sheet steel tank
- A shut off valve to intercept compressed air
- A pressure regulator with filter and pressure gauge
- A compressed air vacuum generator
- A pneumatic drive valve for supplying the vacuum generator operated by the vacuum switch
- A pneumatic vacuum switch for adjusting the level of vacuum
- A vacuum gauge for reading the level of vacuum
- A manual valve for vacuum interception
- A suction filter with FC series paper cartridge
- A cock for condensation drainage from the tank
The level of vacuum, preset via the mini vacuum switch is automatically maintained in the tank.Mini pneumatic pump sets are suited for equipping fixed or mobile working units that require vacuum, such as:
- Trolleys with vacuum cups for fixing and transporting glass and crystals.
- Vacuum clamping systems for ski maintenance, marble drilling and processing, for polishing objects in pewter, copper, silver, etc.
- Hoists with vacuum cups for lifting television sets and household appliances in general, for glass installation in door and window frames, for feeding sheet metal into presses, etc.
The mini pneumatic pump sets do not require any electrical current but only compressed air at 4-6 bar pressure. Recommended in working environments where ignition sources could cause a fire hazard.
Product codes: DOP06PVP12MX DOP06PVP25MX DOP10PVP12MX DOP10PVP25MX

8.126
CAD files on TraceParts
Image zoom
top of page go down
Mini pneumatic pumpsets DOP 20

Mini pneumatic pumpsets DOP 20

This mini pump set is set apart from the previously ones for the vacuum generator installed, as well as for the tank volume.
Vacuum generators of the series PVP... MDX ES are in fact equipped with an energy saving device which automatically maintains the preset level of vacuum inside the tank.
The other accessories installed, except the vacuum switch and the pneumatically driven valve for vacuum generator supply, are the same installed on DOP 06 and DOP 10. Their intended use is the same as the previously described mini pneumatic pump sets.
Product codes: DOP20PVP25MDX DOP20PVP35MDX

8.127
CAD files on TraceParts
Image zoom
top of page go down
Pneumatic pumpsets DOP 25

Pneumatic pumpsets DOP 25

Pneumatic pump sets are self-contained vacuum production units, fed exclusively by compressed air.
They are composed of:
- A welded sheet steel tank
- A compressed air vacuum generator of the series PVP ... MDX ES, equipped with an energy saving device
- A vacuum gauge for reading the level of vacuum
- A manual valve for vacuum interception
- A suction filter with FC series paper cartridge
- A pressure regulator with filter and pressure gauge
- A shut off valve to intercept compressed air
- A cock for condensation drainage from the tank
The level of vacuum in the tank, previously set with the vacuum switch in the generator, is automatically maintained. The pneumatic pump sets are normally used to handle particularly heavy or valuable loads, as it allows vacuum cups to maintain grip for a certain period of time (varies according to tank capacity) even during unexpected absence of power. These pump sets are recommended for multi-point applications, to centralise vacuum. In both cases, use of the pump set is especially advantageous under the profile of energy savings as the generator only operates when a vacuum is required by the utility machine.
The pneumatic pump sets do not require any electrical current but only compressed air at 4-6 bar pressure. Recommended in working environments where ignition sources could cause a fire hazard.
Product codes: DOP25PVP25MDX DOP25PVP35MDX

8.128
CAD files on TraceParts
Image zoom
top of page go down
Pneumatic pump sets DOP 150

Pneumatic pump sets DOP 150

Pneumatic pump sets are self-contained vacuum production units, fed exclusively by compressed air.
They are composed of:
- A welded sheet steel tank
- A compressed air vacuum generator of the series PVP ... MDR ES, equipped with energy saving device
- A vacuum gauge for a direct reading of the level of vacuum in the tank
- A manual valve for vacuum interception
- A suction filter with FC series paper cartridge
- A pressure regulator with filter
- A shut off valve to intercept compressed air
- A cock for condensation drainage from the tank
The level of vacuum in the tank, previously set with the vacuum switch integrated in the pneumatic coaxial shutter supply valve, is fully automatically. The pneumatic pump sets are normally used to handle particularly heavy or valuable loads, as it allows vacuum cups to maintain grip for a certain period of time (varies according to tank capacity) even during unexpected absence of power. They are also recommended for centralising vacuums, for powering multiple utility machines. In both cases, use of the pump set is especially advantageous under the profile of energy savings as the generator only operates when a vacuum is required by the utility machine.
The pneumatic pump sets do not require any electrical energy but only compressed air at 4-6 bar pressure. Recommended in working environments where ignition sources could cause a fire hazard.
Product code: DOP150PVP150MD

8.131
CAD files on TraceParts
Image zoom
top of page go down
Conveyor vacuum generator PVR 25 MS, with support for fastening to vacuum cups

Conveyor vacuum generator PVR 25 MS, with support for fastening to vacuum cups

The particular shape of this rectilinear flow vacuum generator allows for the supply of vacuum cups, especially in the presence of abundant quantities of dust, liquids, sawdust, of various origins, and shavings, without interference. It can reach a level of vacuum of -70KPa, a suction flow rate of about 10 m3/h, with a supply pressure of 3 bar.
The support it is equipped with allows it to be fixed to flat vacuum cups, starting from Ø 200 mm, while a special adapter, available upon request, allows the generator to be fixed at a distance. A "free-flow" silencer is installed on the intake air exhaust with high sound reduction, equipped with appropriate safety protection to prevent the dispersion of the sucked solid impurities in the work environment.
Also upon request, it is possible to supply a digital micro vacuum switch, item 12 05 11 P, for checking the level of vacuum inside the vacuum cup, and a vacuum gauge item 09 03 15, for direct reading of the level.
A good filtration of the compressed air supply will be sufficient to make these devices fully maintenance-free. Their use is recommended in particular on vacuum cups for gripping marble and granite, bricks, rusty metal sheets, rough wooden boards and anything else with especially dirty gripping surfaces.
Product code: PVR25MS

8.117
CAD files on TraceParts
Image zoom
top of page go down
Single-stage and multi-function vacuum generators, MSVE series

Single-stage and multi-function vacuum generators, MSVE series

The vacuum generators of this new series can fully drive a negative pressure gripping system. By means of coaxial shutters, the original compressed air supply system feeds large quantities of air to both the ejectors and the ejection system, thereby ensuring faster gripping and release of the load. These vacuum generators are equipped with single-stage ejectors, are powered by low pressure (max. 4 bar), and feature an extremely high emptying speed in relation to their suction flow rate. All this allows for increasingly faster high-performance work cycles. Two micro solenoid valves manage the compressed air supply to the vacuum ejector and adjustable discharge blow off. The intensity and duration of the latter are managed through a screw-type flow regulator. The check valve built into the suction connector maintains the vacuum in the event of a power outage. A digital vacuum switch, equipped with a display and commutation LED, manages the compressed air supply and provides a signal to start a cycle under safety conditions. An anodised aluminium distributor with vacuum connectors has an integrated suction filter that can be easily inspected. By activating the compressed air power micro solenoid valve, the generator creates vacuum for use. As soon as the set maximum value is reached, the digital vacuum switch acts on the electric coil of the micro solenoid valve and stops the air supply, reactivating it when the vacuum falls below the minimum level.
Besides maintaining the vacuum level within set safety values (hysteresis), this modulation allows for considerable compressed air savings. A second signal from the vacuum switch (also adjustable and independent with respect to the first) can be used to start the cycle when the vacuum level reached is suitable for use. Once the work cycle is completed, the micro solenoid valve that supplies compressed air to the generator is deactivated while, at the same time, the ejection solenoid valve is activated for quick restoration of the atmospheric pressure upon use. The MSVE vacuum generators can be installed in any position and are suitable for suction gripping systems, handling metal sheets, glass, marble, ceramics, plastic, cardboard, wood, etc. and, in particular, for the industrial robotics sector, where equipment with excellent performance and limited weight and bulk are increasingly required.
Product codes: MSVE3 MSVE5

CAD files on TraceParts
Image zoom
top of page go down
Flange fixing support for OCTOPUS systems without Vacuum generator

Flange fixing support for OCTOPUS systems without Vacuum generator

The fixing supports described on this page have been designed to connect an OCTOPUS system to a remotely installed vacuum generator or to an alternative vacuum source.
The supports, made with anodised aluminium, have two flanges: one to be fixed on the OCTOPUS system in the place of the generator and the other on the machine.
They are also equipped with connections for direct connection to the OCTOPUS system, to the generator or to the alternative vacuum source and to the instruments for reading and control of the level of vacuum. The unused connections can be closed with the metal caps provided.
The flange supports are currently available in the versions shown on this page and are suitable for OCTOPUS systems that use the vacuum generators indicated to beside the item:
- Art. SO 00 02 PVP 100 ÷ 200 M
- Art. SO 00 05 PVP 150 ÷ 300 MD
- Art. SO 00 06 PVP 450 MD
Note: The vacuum gauges and vacuum switches shown in the photo are not included with the supports.
Product codes: SO0002 SO0005 SO0006

9.31
CAD files on TraceParts
Image zoom
top of page go down
Accessories and spare parts for OCTOPUS gripping systems and bars

Accessories and spare parts for OCTOPUS gripping systems and bars

- Digital vacuum switch with 1/8” gas axial connection
- Electrical cable with axial connector
- Electrical cable with radial connector
- Vacuum gauge Ø 40 mm with 1/8” coaxial gas coupler
- Pressure gauge Ø 40 mm with 1/8” coaxial gas coupler
- Silencer
- Sealing kit and reed valves
- Stainless steel disc filters
- Supports for vacuum cups with calibrated hole
- Shut-off valves
Product codes: 121010 001220 001221 090315 090325 SSX1/4 00KITPVP25MX 00KITPVP100M 00KITPVP140M 00KITPVP170M 00KITPVP200M 00KITPVP150MD 00KITPVP300MD 00KITPVP450MD 00SO05 00SO10 00SO14 0008157 0008178 0008158 0008425 0008170 140106 140107

CAD files on TraceParts
Image zoom
top of page go down
OCTOPUS vacuum gripping bars - General description

OCTOPUS vacuum gripping bars - General description

These bars have been created to further facilitate the installation of OCTOPUS vacuum gripping systems on palletising robots. They are based on the same operating principle and, in addition to the advantages and technical features of the standard OCTOPUS, are equipped with a grooved support plate to allow quick installation on the machine and easy positioning with respect to the load to be gripped.
They are in fact composed of:
- A slotted anodised aluminium fixing plate for quick installation onto the machine
- One or more compressed air-fed vacuum generators, depending on their size
- A connection equipped with quick coupling for feeding compressed air to the generators
- An anodised aluminium box, open on one side, with two air inlet connections inside at the end of the cycle, for quick restoration of the atmospheric pressure and one for possible installation of a vacuum switch.
- A suction plate sealing the box, also made with anodised aluminium, with calibrated holes equidistant from each other and coated with a special perforated foam rubber. This suction plate can thus perfectly adapt to any gripping surface, whether it be smooth, rough or irregular. With the same bar, for example, it is possible to grip and move wooden joists or metal profiles and the pallet that supports them.
The OCTOPUS gripping bars described so far are the standard bars: they can be supplied upon request with suction plates and with shut-off valves and, to make them even lighter, the aluminium parts can be made of Polizene, a thermoplastic material that decreases the weight by about 40%.

Image zoom
top of page go down
Degasifiers

Degasifiers

The function of degasifiers is to suck the air bubbles that remain in the synthetic resin or composite material mixes and in silicone or similar compounds during their preparation. The presence of bubbles, in fact causes a drastic reduction of their technical features and negatively affects their appearance.
Degasifiers are composed of:
- One or two welded sheet steel autoclaves, featuring a perfect vacuum seal, equipped with transparent methacrylate lids that can be manually removed.
- An oil-bath rotating vane pump for high vacuum.
- One or two vacuum switches for a direct reading of the level of vacuum in the autoclave.
- One or two three-way manual valves for vacuum interception.
- A switchgear enclosed in a special protective casing.
- A profiled steel frame for assembling all the components.
Inside the autoclave, the degasifiers can reach a final level of vacuum equal to 99.5 %. With small modifications and with the aid of insulating or waterproofing resins these degasifiers can be used for vacuum-impregnating windings for electric motors, transformers, electric coils, etc.
Upon request they can also be supplied in different versions.
Product codes: DR10001 DR10002 D2R15001 D2R15002

11.01
CAD files on TraceParts
Image zoom
top of page go down
Electrical equipment for vacuum tests

Electrical equipment for vacuum tests

These devices have been created for testing the weldings and, therefore, the sealing of cellophane or PVC wrappings for food products.
In fact, the wrapping placed inside a bell jar tends to inflate because of the pressure differential created between the air at atmospheric pressure contained inside and the vacuum created inside the bell jar. The higher the level of vacuum reached in the bell jar and the greater the thrust that the air contained in the wrapping will exert on the walls and, therefore, on the weldings.
The devices for vacuum tests are composed of:
- A mobile transparent Plexiglass bell jar.
- A support surface with seal.
- A dry rotating vane vacuum pump.
- Two 2-way manual valves for vacuum interception.
- A vacuum gauge for a direct reading of the level of vacuum and the atmospheric air in the bell jar at the end of the cycle.
- A switchgear enclosed in a special protective casing with a digital vacuum switch to adjust the level of vacuum in the bell jar.
- A bent sheet steel frame with anti-vibration feet for assembling all the components described above.
The level of vacuum that can be reached inside the bell jar depends on the pump installed.
The test values are adjustable and can be automatically repeated.
Available in other versions upon request.
Product codes: ATS05 ATS20

11.03
CAD files on TraceParts
Image zoom
top of page go down
Suction units with syphon filter GA FS 5 and GA FS 10

Suction units with syphon filter GA FS 5 and GA FS 10

These suction units with syphon filter allow sucking fluids saturated with condensation or mixed with water and liquids. They share all the best technical features of syphon filters and vacuum generators. In fact, they keep liquids and solid impurities, while the vacuum generator can suck fluids saturated with vapours or liquid condensation without compromising its performance.
These devices are composed of:
- A standard syphon filter described in Chapter 5.
- A compressed air-fed multi-stage vacuum generator.
- A pneumatic vacuum switch for adjusting the level of vacuum
- A vacuum gauge for a direct reading of the level of vacuum in the container.
- A pneumatic valve for supplying the vacuum generator operated by the vacuum switch
- A sleeve valve for compressed air interception.
The level of vacuum, preset with the vacuum switch, is automatically maintained in the Plexiglass container. These suction units with syphon filter are suited for vacuum cup clamping systems for gripping glass, marble, granite, light alloys and in all those cases with a considerable presence of refrigerating liquids.
They are also recommended for suctioning creamy or muddy substances which can be difficult to handle with traditional pumps.
These suction assemblies are fed by compressed air at a pressure of 4-6 bar only. Available in other versions upon request.
Technical features
Operating pressure: from 0.5 to 1000 absolute mbar
Fluid temperature: from -5 to +50°C
Level of filtration: 60 μ
Product code: GAFS5 GAFS10

11.05
CAD files on TraceParts
Image zoom
top of page go down
Suction units with syphon filter GA FS 20 ES - GA FS 30 ES

Suction units with syphon filter GA FS 20 ES - GA FS 30 ES

These suction units with syphon filters share the same features and functions as the previous ones; their distinctive features are their size and the type of generator installed. Their functions are also the same.
These devices are composed of:
- A standard syphon filter described in Chapter 5.
- A compressed air-operated multi-stage vacuum generator with a built-in energy-saving system ES. - A vacuum gauge for a direct reading of the level of vacuum in the container.
- A shut off valve to intercept compressed air.
The level of vacuum, preset with the vacuum switch, is automatically maintained in the Plexiglass container. Like the previous ones, these suction units with syphon filter are also suited for vacuum cup clamping systems for gripping glass, marble, granite, light alloys and in all those cases with a considerable presence of refrigerating liquids.
They are also recommended for suctioning creamy or muddy substances which can be difficult to handle with traditional pumps.These suction assemblies are fed by compressed air at a pressure of 4-6 bar only. Available in other versions upon request.
Technical features
Operating pressure: from 0.5 to 1000 absolute mbar
Fluid temperature: from -5 to +50°C
Level of filtration: 60 μ
Product codes: GAFS20ES GAFS25ES GAFS30ES

11.06
CAD files on TraceParts
Image zoom
top of page go down
Safety suction units with syphon filter

Safety suction units with syphon filter

These units have the same functions as the previous ones, but they differ in their automation and composition. In fact, these devices are composed of:
- A standard syphon filter described in Chapter 5.
- Two compressed air-operated multi-stage vacuum generators with a built-in energy-saving system ES.
- A vacuum gauge for a direct reading of the level of vacuum in the container.
- Two sleeve valves for compressed air interception.
These safety suction units normally provide for the operation of one vacuum generator with subsequent automatic insertion of the other one for higher consumptions and when, for whatever reason, the plant level of vacuum goes below the preset minimum value. All this also guarantees continuous operation even in presence of a vacuum generator breakdown.
The level of vacuum, preset with the vacuum switch, is automatically maintained in the Plexiglass container. These suction units with syphon filter are suited for vacuum cup clamping systems for gripping glass, marble, granite, light alloys and in all those cases with a considerable presence of refrigerating liquids and an effective need to ensure the presence of vacuum throughout the entire production cycle.
They are also recommended for suctioning creamy or muddy substances which can be difficult to handle with traditional pumps.These suction assemblies are fed by compressed air at a pressure of 4-6 bar only. Available in other versions upon request.
Technical features
Operating pressure: from 0.5 to 1000 absolute mbar
Fluid temperature: from -5 to +50°C
Level of filtration: 60 μ
Product codes: GASFS20ES GASFS25ES GASFS30ES

11.07
CAD files on TraceParts
Image zoom
top of page go down
Liquid-sucking pump sets

Liquid-sucking pump sets

These pump sets are for sucking liquids and collect them inside their tanks. The maximum level difference that can be exceeded is approximately 9 metres.
They are composed of:
- A welded sheet steel large-capacity tank- A compressed air-fed multi-stage vacuum generator
- A digital vacuum switch for adjusting the level of vacuum within which to operate
- A vacuum gauge for a direct reading of the level of vacuum in the tank
- A liquid level visible warning light
- Two magnetic switches for minimum and maximum liquid level
- One three-way vacuum solenoid valve for resetting the atmospheric pressure in the tank, with consequent automatic discharge of the accumulated liquid
- Two vacuum reducers for level of vacuum adjustment at the application
- Three manual valves for vacuum interception
- A switchgear enclosed in a special protective casing for manual or automatic operation selectionLiquid-sucking pump sets are normally used for extracting the water contained in washing machine and dishwasher filters that cannot be automatically drained after their commissioning.
They are also recommended for transferring dense liquids and creamy or muddy substances.
Available in other versions upon request.
Product codes: DVL150 DVL300 DVL500 DVL1000

11.08
CAD files on TraceParts
Image zoom
top of page go down
