Membrane vacuum mini pumps

Membrane vacuum mini pumps

The mini pumps described in this page are membrane-type. They can be used both as vacuum pumps and compressors. In the latter version they can supply compressed air 100% oil-free up to a maximum 2 bar (g) pressure. They are composed of:
- An air-cooled single-phase electric motor with protection class IP 00 (assembly execution).
- A pump body made of plastic corrosion-resistant material, complete with fittings at both suction and blowing ports.
- A Viton membrane, resistant to wear and corrosion, solidly connected to a connecting rod.
- A connecting rod with built-in “long life” bearing activated by a balanced eccentric system fitted on the motor shaft.
- An aluminium support for fixing the pump.
They are available in the versions with single and double head to be used in series or in parallel. Membrane vacuum mini pumps are very silent (≤ 50dB(A)), they have reduced vibrations and can be installed in any position. Lubrication-free, they require no maintenance. Thanks to their minimal overall dimensions and reduced weight, they are particularly indicated for being installed on portable equipment. They are suited for a discontinuous and non-intense use.
Product codes: H35M H40DM H35MCC H40DMCC

top next
Rotary vane vacuum pumps – general description

Rotary vane vacuum pumps – general description

Operation principle
The rotor rotates eccentrically inside a stator and it has grooves in which the vanes move freely and are pushed against the stator inside wall due to the centrifugal force, thus creating as many chambers as the number of vanes. During rotation, the volume of these chambers varies according to their position with respect to the eccentric axis. The chamber volume increase makes the air inside of them expand, thus creating vacuum (suction phase); the volume reduction, on the other hand, generates air compression (exhaust or delivery phase). The internal design is the same for both rotating compressors and vacuum pumps. We have created two different sucked air conveying principles for our pumps.

top next
Vane mini vacuum pumps

Vane mini vacuum pumps

These rotating vane mini vacuum pumps, when needed, can be used even for compressing air. They are composed of a single-phase induction electric motor with condenser, a sintered metal self-lubricating stator, a white metal rotor fitted onto the motor shaft and slotted for housing the hardened steel vanes and a silencer on the exhaust. The operation principle is the same as that of the larger series of vane vacuum pumps. They are noiseless and lubrication-free and require no maintenance. Thanks to their minimal overall dimensions and their reduced weight, they are particularly suited for being installed on portable equipment. They are suitable for discontinuous, non-intense use.
Product codes: H25R H45R H45DR H25RCC H45RCC H45DRCC

top next
Vacuum pumps vtl 2 and 4

Vacuum pumps vtl 2 and 4

These small vacuum pumps have a suction capacity of 2 and 4 cum/h They feature a wick lubrication with oil recirculation, while the rotor, which is cantilevered-fitted on the motor shaft, allows reducing the overall dimensions to the minimum. The motor and the pump are cooled by the motor fan (surface cooling). The pumps are equipped with a small tank in line with the pump, which contains the lubrication oil as well as a separator filtre to prevent oil mists and to reduce noise. We strongly recommend installing a check valve and a filter on the suction inlet. Pumps VTL 2 and 4 can also be supplied with single-phase electric motor.
Product codes: VTL2 VTL4

top next
Vacuum pumps vtl 5 and vtl 10

Vacuum pumps vtl 5 and vtl 10

These vacuum pumps have a suction capacity of 5 and 10 cum/h. The vacuum lubrication with oil recirculation can be adjusted via an oiler located in correspondence of the suction inlet. The rotor is cantilevered-fitted on the motor shaft and, as a result, the overall dimensions are reduced. The motor and the pump are cooled by the motor fan (surface cooling). An oil recovery tank is installed on the pump exhaust. This tank contains a separator filtre that prevents oil mists and reduces noise. We strongly recommend installing a check valve and a filter on the suction inlet. Pumps VTL 5 and 10 can also be supplied with a single-phase electric motor.
Product codes: VTL5 VTL10

top next
Vacuum pumps vtlp 5 and 10, with disposable lubrication

Vacuum pumps vtlp 5 and 10, with disposable lubrication

These vacuum pumps having a suction capacity of 5 and 10 cum/h. The vacuum lubrication with oil recirculation can be adjusted via an oiler located in correspondence of the suction inlet. The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges. The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump. An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise. A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained. The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch. In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oiler and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could effect oil properties. We strongly recommend installing a check valve and a filter on the suction inlet. Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTLP5 VTLP10

top next
Vacuum pumps vtl 10/f, 15/f and 20/f

Vacuum pumps vtl 10/f, 15/f and 20/f

These vacuum pumps having a suction capacity of 10, 15 and 20 cum/h. The vacuum lubrication with oil recirculation can be adjusted via an oiler located in correspondence of the suction inlet. The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges. The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump. An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise. We strongly recommend installing a check valve and a filtre on the suction inlet. Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTL10/F VTL15/F VTL20/F

top next
Vacuum pumps vtlp 10/f, 15/f and 20/f, with disposable lubrication

Vacuum pumps vtlp 10/f, 15/f and 20/f, with disposable lubrication

These vacuum pumps having a suction capacity of 10, 15 and 20 cum/h. The vacuum lubrication with oil recirculation can be adjusted via an oiler located in correspondence of the suction inlet. The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges. The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump. An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise. A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained. The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch. In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oiler and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could affect oil properties. We strongly recommend installing a check valve and a filter on the suction inlet. Also this range of pumps can be supplied with single-phase electric motors.
Product codes: VTLP10/F VTLP15/F VTLP20/F

top next
Vacuum pumps vtl 25/fg, 30/fg and 35/fg

Vacuum pumps vtl 25/fg, 30/fg and 35/fg

These vacuum pumps have a suction capacity of 10, 15 and 20 cum/h. The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings. The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges. The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint. All this allows using standard electric motors, in the shapes and sizes indicated in the table. The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump. An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise. We strongly recommend installing a check valve and a filter on the suction inlet. These pumps are supplied with three-phase electric motors only.
Product codes: VTL25/FG VTL30/FG VTL35/FG

top next
Vacuum pumps vtlp 25/fg, 30/fg and 35/fg, with disposable lubrication

Vacuum pumps vtlp 25/fg, 30/fg and 35/fg, with disposable lubrication

These vacuum pumps have a suction capacity of 25, 30 and 35 cum/h. The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings. The rotor is cantilevered-fitted on the motor shaft and supported by independent bearings housed in the two pump flanges. The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint. All this allows using standard electric motors, in the shapes and sizes indicated in the table. The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump. An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise. A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained. The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch. In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oiler and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could affect oil properties. We strongly recommend installing a check valve and a filter on the suction inlet. These pumps are supplied with three-phase electric motors only.
Product codes: VTLP25/FG VTLP30/FG VTLP35/FG

top next
Vacuum pumps vtl 40/g1, 50/g1 and 65/g1

Vacuum pumps vtl 40/g1, 50/g1 and 65/g1

These vacuum pumps have a suction capacity of 40, 50 and 65 cum/h. The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings. The rotor is fitted on the motor shaft and supported by independent bearings housed in the two pump flanges. The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint. All this allows using standard electric motors, in the shapes and sizes indicated in the table. The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump. An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise. A check valve and a filter must be installed on the suction inlet. These pumps are supplied with three-phase electric motors only.
Product codes: VTL40/G1 VTL50/G1 VTL65/G1

top next

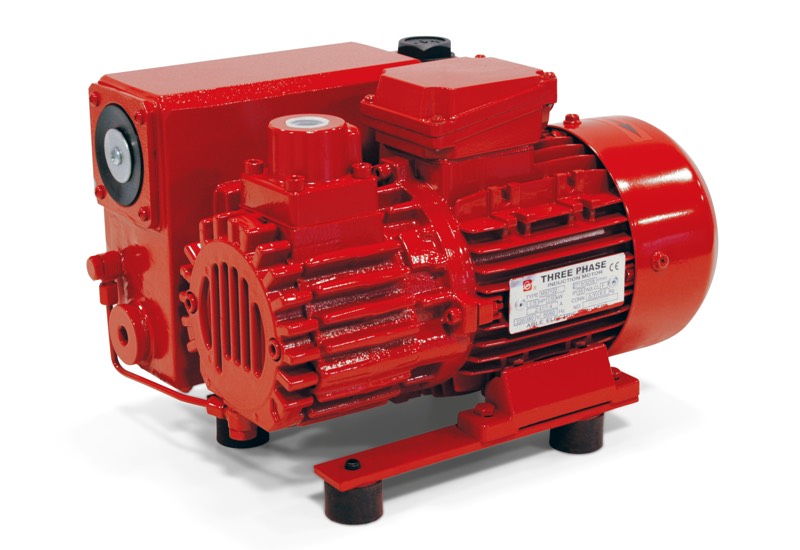

Vacuum pumps vtl 75/g1, 90/g1 and 105/g1

Vacuum pumps vtl 75/g1, 90/g1 and 105/g1

These vacuum pumps have a suction capacity of 75, 90 and 105 cum/h. The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings. The rotor is fitted on the motor shaft and supported by independent bearings housed in the two pump flanges. The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint. All this allows using standard electric motors, in the shapes and sizes indicated in the table. The pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump. An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise. A check valve and a filter must be installed on the suction inlet. These pumps are supplied with three-phase electric motors only.
Product codes: VTL75/G1 VTL90/G1 VTL105/G1

top next
Vacuum pumps vtlp 40/g1, 50/g1 and 65/g1, with disposable lubrication

Vacuum pumps vtlp 40/g1, 50/g1 and 65/g1, with disposable lubrication

These vane vacuum pumps have a suction capacity of 40, 50 and 65 cum/h. The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings. The rotor is fitted on the motor shaft and supported by independent bearings housed in the two pump flanges. The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint. All this allows using standard electric motors, in the shapes and sizes indicated in the table. he pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump. An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise. A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained. The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch. In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oiler and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could affect oil properties. A check valve and a filter must be installed on the suction inlet. These pumps are supplied with three-phase electric motors only.
Product codes: VTLP40/G1 VTLP50/G1 VTLP65/G1

top next
Vacuum pumps vtlp 75/g1, 90/g1 and 105/g1, with disposable lubrication

Vacuum pumps vtlp 75/g1, 90/g1 and 105/g1, with disposable lubrication

These vane vacuum pumps have a suction capacity of 75, 90 and 105 cum/h. The vacuum lubrication with oil recirculation is adjusted via two oilers located in correspondence of the support bearings. The rotor is fitted on the motor shaft and supported by independent bearings housed in the two pump flanges. The pump and the electric motor are, therefore, two independent units and fixed onto a special support and connected to each other via an elastic transmission joint. All this allows using standard electric motors, in the shapes and sizes indicated in the table. he pump is surface cooled. Heat is dispersed from the outer surface, suitably finned, by means of a radial fan placed between motor and pump. An oil recovery tank is installed on the pump exhaust. This tank contains a separator filter that prevents oil mists and reduces noise. A safety valve is also installed on the tank for the automatic drainage of the exhaust oil when not regularly drained. The lubrication oil is contained in a special transparent container, fixed to the pump via its support, and controlled by a magnetic level switch. In pumps with disposable lubrication, the oil is sucked in the pump through an adjustable drip oiler and drained together with the sucked air in the recovery tank, without being put in circulation again. These pumps are necessary when the air to be sucked contains water condensation, solvent vapours or anything else that could effect oil properties. A check valve and a filter must be installed on the suction inlet. These pumps are supplied with three-phase electric motors only.
Product codes: VTLP75/G1 VTLP90/G1 VTLP105/G1

top next
Vacuum pump vtl 6 dc, with dc motor

Vacuum pump vtl 6 dc, with dc motor

The extremely reduced size, the excellent final vacuum level that can be reached and the DC electric motor are the main features of this rotating vane vacuum pump. The internal vacuum lubrication is with oil recirculation. Both the motor and the pump are cooled by the motor pump (surface cooling). The pump is equipped with a small tank in line with its axis, which contains the lubrication oil and a condensation separator that prevents exhaust oil mists and reduces noise. A check valve on the suction inlet is integral part of the pump. Upon request, it can be supplied with a special filter. The VTL 6 DC pump can only be supplied with a DC motor (service S1) conform with the EMC (89/336/CEE) Directive.
Product codes: VTL6CC

top next
Oil-bath vacuum pumps mv 20 and mv 20a

Oil-bath vacuum pumps mv 20 and mv 20a

The single-stage oil-bath vane vacuum pumps of the MV series are activated by a standard electric motor coupled together via an elastic transmission joint. A centrifugal fan cantilevered-fitted onto the pump shaft guarantees the right airflow for cooling the pump unit (forced surface cooling). A large oil recovery tank with built-in microfiber de-oiling cartridges, located on the pump exhaust, serves as a silencer and as a fume collector. The oil contained in the system lubricates, cools and seals the rotating and the fixed parts of the pumps. The standard check valve on the suction inlet is integral part of the pumps. Upon request, a filter for trapping possible impurities can also be provided. Pumps included between the MV 20 and the MV 100 are set for the installation of a gas ballast valve (upon request) which allows for a high compatibility to water vapour. In the other pumps, starting from MV 160R up to MV 300R, the built-in gas ballast valve is a standard. The features described above associated with a strong and compact construction make the pumps of the MV series suitable for continuous and intense use.
Product codes: MV20 MV20A

top next
Oil-bath vacuum pumps mv 40 and mv 40a

Oil-bath vacuum pumps mv 40 and mv 40a

The single-stage oil-bath vane vacuum pumps of the MV series are activated by a standard electric motor coupled together via an elastic transmission joint. A centrifugal fan cantilevered-fitted onto the pump shaft guarantees the right airflow for cooling the pump unit (forced surface cooling). A large oil recovery tank with built-in microfiber de-oiling cartridges, located on the pump exhaust, serves as a silencer and as a fume collector. The oil contained in the system lubricates, cools and seals the rotating and the fixed parts of the pumps. The standard check valve on the suction inlet is integral part of the pumps. Upon request, a filter for trapping possible impurities can also be provided. Pumps included between the MV 20 and the MV 100 are set for the installation of a gas ballast valve (upon request) which allows for a high compatibility to water vapour. In the other pumps, starting from MV 160R up to MV 300R, the built-in gas ballast valve is a standard. The features described above associated with a strong and compact construction make the pumps of the MV series suitable for continuous and intense use.
Product codes: MV40 MV40A

top next
Oil-bath vacuum pumps mv 60 and mv 60a

Oil-bath vacuum pumps mv 60 and mv 60a

The single-stage oil-bath vane vacuum pumps of the MV series are activated by a standard electric motor coupled together via an elastic transmission joint. A centrifugal fan cantilevered-fitted onto the pump shaft guarantees the right airflow for cooling the pump unit (forced surface cooling). A large oil recovery tank with built-in microfiber de-oiling cartridges, located on the pump exhaust, serves as a silencer and as a fume collector. The oil contained in the system lubricates, cools and seals the rotating and the fixed parts of the pumps. The standard check valve on the suction inlet is integral part of the pumps. Upon request, a filter for trapping possible impurities can also be provided. Pumps included between the MV 20 and the MV 100 are set for the installation of a gas ballast valve (upon request) which allows for a high compatibility to water vapour. In the other pumps, starting from MV 160R up to MV 300R, the built-in gas ballast valve is a standard. The features described above associated with a strong and compact construction make the pumps of the MV series suitable for continuous and intense use.
Product codes: MV60 MV60A

top next
Oil-bath vacuum pumps mv 100 and mv 100a

Oil-bath vacuum pumps mv 100 and mv 100a

The single-stage oil-bath vane vacuum pumps of the MV series are activated by a standard electric motor coupled together via an elastic transmission joint. A centrifugal fan cantilevered-fitted onto the pump shaft guarantees the right airflow for cooling the pump unit (forced surface cooling). A large oil recovery tank with built-in microfiber de-oiling cartridges, located on the pump exhaust, serves as a silencer and as a fume collector. The oil contained in the system lubricates, cools and seals the rotating and the fixed parts of the pumps. The standard check valve on the suction inlet is integral part of the pumps. Upon request, a filter for trapping possible impurities can also be provided. Pumps included between the MV 20 and the MV 100 are set for the installation of a gas ballast valve (upon request) which allows for a high compatibility to water vapour. In the other pumps, starting from MV 160R up to MV 300R, the built-in gas ballast valve is a standard. The features described above associated with a strong and compact construction make the pumps of the MV series suitable for continuous and intense use.
Product codes: MV100 MV100A

top next

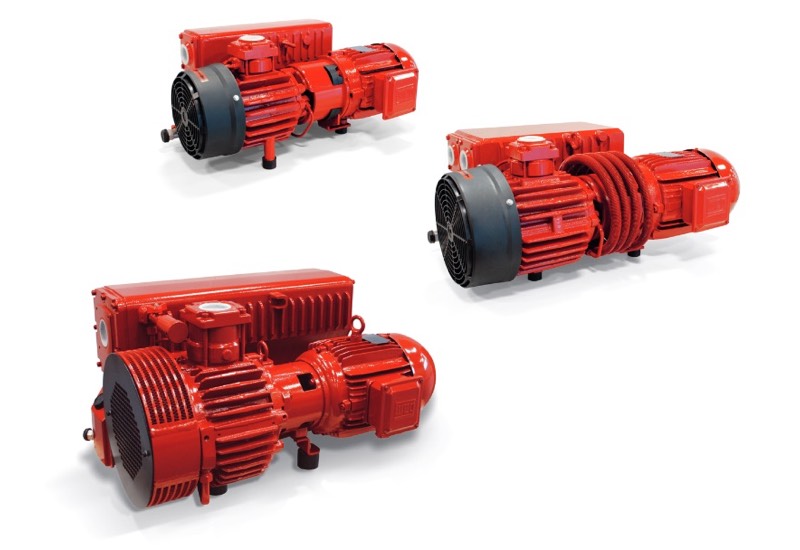

Oil-bath vacuum pumps mv 160r and mv 160ra

Oil-bath vacuum pumps mv 160r and mv 160ra

The single-stage oil-bath vane vacuum pumps of the MV series are activated by a standard electric motor coupled together via an elastic transmission joint. A centrifugal fan cantilevered-fitted onto the pump shaft guarantees the right airflow for cooling the pump unit (forced surface cooling). A large oil recovery tank with built-in microfiber de-oiling cartridges, located on the pump exhaust, serves as a silencer and as a fume collector. The oil contained in the system lubricates, cools and seals the rotating and the fixed parts of the pumps. The standard check valve on the suction inlet is integral part of the pumps. Upon request, a filter for trapping possible impurities can also be provided. Pumps included between the MV 20 and the MV 100 are set for the installation of a gas ballast valve (upon request) which allows for a high compatibility to water vapour. In the other pumps, starting from MV 160R up to MV 300R, the built-in gas ballast valve is a standard. The features described above associated with a strong and compact construction make the pumps of the MV series suitable for continuous and intense use.
Product codes: MV160R MV160RA

top next
Oil-bath vacuum pumps mv 200r and mv 200ra

Oil-bath vacuum pumps mv 200r and mv 200ra

The single-stage oil-bath vane vacuum pumps of the MV series are activated by a standard electric motor coupled together via an elastic transmission joint. A centrifugal fan cantilevered-fitted onto the pump shaft guarantees the right airflow for cooling the pump unit (forced surface cooling). A large oil recovery tank with built-in microfiber de-oiling cartridges, located on the pump exhaust, serves as a silencer and as a fume collector. The oil contained in the system lubricates, cools and seals the rotating and the fixed parts of the pumps. The standard check valve on the suction inlet is integral part of the pumps. Upon request, a filter for trapping possible impurities can also be provided. Pumps included between the MV 20 and the MV 100 are set for the installation of a gas ballast valve (upon request) which allows for a high compatibility to water vapour. In the other pumps, starting from MV 160R up to MV 300R, the built-in gas ballast valve is a standard. The features described above associated with a strong and compact construction make the pumps of the MV series suitable for continuous and intense use.
Product codes: MV200R MV200RA

top next
Oil-bath vacuum pumps mv 300r and mv 300ra

Oil-bath vacuum pumps mv 300r and mv 300ra

The single-stage oil-bath vane vacuum pumps of the MV series are activated by a standard electric motor coupled together via an elastic transmission joint. A centrifugal fan cantilevered-fitted onto the pump shaft guarantees the right airflow for cooling the pump unit (forced surface cooling). A large oil recovery tank with built-in microfiber de-oiling cartridges, located on the pump exhaust, serves as a silencer and as a fume collector. The oil contained in the system lubricates, cools and seals the rotating and the fixed parts of the pumps. The standard check valve on the suction inlet is integral part of the pumps. Upon request, a filter for trapping possible impurities can also be provided. Pumps included between the MV 20 and the MV 100 are set for the installation of a gas ballast valve (upon request) which allows for a high compatibility to water vapour. In the other pumps, starting from MV 160R up to MV 300R, the built-in gas ballast valve is a standard. The features described above associated with a strong and compact construction make the pumps of the MV series suitable for continuous and intense use.
Product codes: MV300R MV300RA

top next
Lubricated vacuum pump accessories and spare parts

Lubricated vacuum pump accessories and spare parts

Product codes: 00VTL0210 00VTL0410 00VTL0510 00VTL1010 00VTL10F10 00VTL15F10 00VTL20F10 00VTL25FG10 00VTL30FG10 00VTL35FG10 00VTL40G110 00VTL50G110 00VTL65G110 00VTL75G110 00VTL90G110 00VTL105G110 00VTL0610 00MV2010 00MV4010 00MV6010 00MV10010 00MV160R10 00MV200R10 00MV300R10 00KITVTL02 00KITVTL04 00KITVTL05 00KITVTL10 00KITVTL10F 00KITVTL15F 00KITVTL20F 00KITVTL25FG 00KITVTL30FG 00KITVTL35FG 00KITVTL40G1 00KITVTL50G1 00KITVTL65G1 00KITVTL75G1 00KITVTL90G1 00KITVTL105G1 00KITVTL06 00KITMV20 00KITMV40 00KITMV60 00KITMV100 00KITMV160R 00KITMV200R 00KITMV300R 100115 100215 100210 100310 100410 100510 100610 100710 FB5 FB10 FB20 FB25 FB30 FB40 FB50 FC10 FC20 FC25 FC30 FC35 FC40 FC50 FC60 MV200RA MV300R MV300RA 00VTL0011 00LPVTL99 00LPVTL40 00MV160R07 00MV200R07 00MV300R07 00VTL75G129 00VTL90G129 00VTL105G129 00MV2011 00MV4050 00MV6050 00MV10006 00MV160R06 00MV200R50 00MV300R50 VZ01 VZ02 ISO32 ISO68 ISO100 ISO150 ISO220 VTOIL32 VTOIL68 VTOIL100 VTOILFI68 VTOILFI100

top next
Dry vacuum pumps vts 2 and 4

Dry vacuum pumps vts 2 and 4

These small dry vacuum pumps have a suction capacity of 2 and 4 cum/h. The particular shape of the working chamber and the special graphite, with which the locking flanges and vanes are made, allow these pumps to operate with no lubrication. The rotor is cantilevered-fitted on the motor shaft, thus reducing overall dimensions to the minimum. The motor and the pump are cooled by the motor fan (surface cooling). A filter that functions as a silencer is installed on the suction inlet. We strongly recommend installing a filter on the suction inlet against possible impurities. These pumps are not recommended when the fluid to be sucked contains water or oil vapours or condensations. Vacuum pumps VTS 2 and 4 can also be supplied with single-phase electric motor.
Product codes: VTS2 VTS4

top next
Dry vacuum pumps vts 6 dc, with dc motor

Dry vacuum pumps vts 6 dc, with dc motor

The extremely reduced size, the excellent final vacuum level that can be reached, the total absence of lubrication and the DC motor with which it is equipped, are the main features of this rotating vane vacuum pump. This pump has a mono-block structure with the rotor fitted directly on the motor shaft. Both the motor and the pump are cooled by the motor fan (surface cooling). A filter that functions as a silencer is installed on the suction inlet. We strongly recommend installing a filter on the suction inlet against possible impurities. These pumps are not recommended when the fluid to be sucked contains water or oil vapours or condensations. Pumps VTS 6 DC can only be supplied with DC motor (service S1) conform with the EMC (89/336/EEC) Directive.
Product codes: VTS6CC

top next
Dry vacuum pumps vts 6 and 10

Dry vacuum pumps vts 6 and 10

These dry vacuum pumps have a suction capacity of 6 and 10 cum/h. The particular shape of the working chamber and the special graphite, with which the locking flanges and vanes are made, allow these pumps to operate without any lubrication. The rotor is cantilevered-fitted on the motor shaft, thus reducing overall dimensions to the minimum. The motor and the pump are cooled by the motor fan (surface cooling). A filter that functions as a silencer is installed on the suction inlet.. We strongly recommend installing a filter on the suction inlet against possible impurities. These pumps are not recommended when the fluid to be sucked contains water or oil vapours or condensations. Pumps VTS 6 and 10 can also be supplied with single-phase electric motor.
Product codes: VTS6 VTS10

top next
Dry vacuum pumps vts 10/f and 15/f

Dry vacuum pumps vts 10/f and 15/f

These lubrication-free rotating vane vacuum pumps have a suction capacity of 10, 15, 20 and 25 cum/h. The particular shape of the working chamber and the special graphite, with which the locking flanges and vanes are made, allow these pumps to operate with no lubrication. The pump rotor is fitted on the motor shaft and supported by independent bearings located on both the pump locking flanges. The pump is surface-cooled; the heat is dispersed from the especially finned external surface by a radial fan located between the motor and the pump. A filter that functions as a silencer is installed on the suction inlet. We strongly recommend installing a filter on the suction inlet against possible impurities. These pumps are not recommended when the fluid to be sucked contains water or oil vapours or condensations. This range of pumps can be also supplied with single-phase electric motors.
Product codes: VTS10/F VTS15/F

top next
Dry vacuum pumps vts 20/f and 25/f

Dry vacuum pumps vts 20/f and 25/f

These lubrication-free rotating vane vacuum pumps have a suction capacity of 10, 15, 20 and 25 cum/h. The particular shape of the working chamber and the special graphite, with which the locking flanges and vanes are made, allow these pumps to operate with no lubrication. The pump rotor is fitted on the motor shaft and supported by independent bearings located on both the pump locking flanges. The pump is surface-cooled; the heat is dispersed from the especially finned external surface by a radial fan located between the motor and the pump. A filter that functions as a silencer is installed on the suction inlet. We strongly recommend installing a filter on the suction inlet against possible impurities. These pumps are not recommended when the fluid to be sucked contains water or oil vapours or condensations. This range of pumps can be also supplied with single-phase electric motors.
Product codes: VTS20/F VTS25/F

top next
Dry vacuum pumps vts 10/fg, 15/fg and 20/fg

Dry vacuum pumps vts 10/fg, 15/fg and 20/fg

These lubrication-free rotating vane vacuum pumps have a suction capacity of 10, 15, 20, 25, 30 and 35 cum/h. The particular shape of the working chamber and the special graphite, with which the locking flanges and vanes are made, allow these pumps to operate with no lubrication. The pump rotor is fitted on the motor shaft and supported by independent bearings located on both the pump locking flanges. Therefore, the pump and the electric motor are two independent units connected to each other by an elastic transmission joint. All this allows using standard electric motors in the shapes and sizes indicated in the table. The pump is surface-cooled; the heat is dispersed from the especially finned external surface by a radial fan located between the motor and the pump. A filter that functions as a silencer is installed on the suction inlet. We strongly recommend installing a filter on the suction inlet against possible impurities. These pumps are not recommended when the fluid to be sucked contains water or oil vapours or condensations. The pumps with capacity up to 20 cum/h can also be supplied with single-phase electric motors.
Product codes: VTS10/FG VTS15/FG VTS20/FG

top next
Dry vacuum pumps vts 25/fg, 30/fg and 35/fg

Dry vacuum pumps vts 25/fg, 30/fg and 35/fg

These lubrication-free rotating vane vacuum pumps have a suction capacity of 10, 15, 20, 25, 30 and 35 cum/h. The particular shape of the working chamber and the special graphite, with which the locking flanges and vanes are made, allow these pumps to operate with no lubrication. The pump rotor is fitted on the motor shaft and supported by independent bearings located on both the pump locking flanges. Therefore, the pump and the electric motor are two independent units connected to each other by an elastic transmission joint. All this allows using standard electric motors in the shapes and sizes indicated in the table. The pump is surface-cooled; the heat is dispersed from the especially finned external surface by a radial fan located between the motor and the pump. A filter that functions as a silencer is installed on the suction inlet. We strongly recommend installing a filter on the suction inlet against possible impurities. These pumps are not recommended when the fluid to be sucked contains water or oil vapours or condensations. The pumps with capacity up to 20 cum/h can also be supplied with single-phase electric motors.
Product codes: VTS25/FG VTS30/FG VTS35/FG

top next
Dry vacuum pump accessories and spare parts

Dry vacuum pump accessories and spare parts

Product codes: 00VTS0210 00VTS0410 00VTS06CC10 00VTS0610 00VTS1010 00VTS10F10 00VTS15F10 00VTS20F10 00VTS25F10 00VTS10FG10 00VTS15FG10 00VTS20FG10 00VTS25FG10 00VTS30FG10 00VTS35FG10 00VTS0212 00VTS0216 00VTS0608 00VTS1012 00VTS10F21 00VTS10FG17 00VTS15FG17 00VTS20FG17 00VTS25FG17 00VTS30FG18 00VTS35FG18 00VTS0613 00VTS1019 00VTS10F21 00VTS10FG26 00VTS15FG26 00VTS20FG26 00VTS25FG26 00VTS30FG27 00VTS35FG27 00KITVTS02 00KITVTS04 00KITVTS06 00KITVTS06CC 00KITVTS10 00KITVTS10F 00KITVTS15F 00KITVTS20F 00KITVTS25F 00KITVTS10FG 00KITVTS15FG 00KITVTS20FG 00KITVTS25FG 00KITVTS30FG 00KITVTS35FG 100115 100210 100310 100410 FB5 FB10 FB20 FB25 FC10 FC20 FC25

top next
Mini pumpsets – general description

Mini pumpsets – general description

Mini pumpsets are independent vacuum-producing units with reduced size.
They are composed of:
- A small welded sheet steel tank with perfect vacuum seal.
- A low-capacity dry or lubricated rotating vane vacuum pump.
- A mini vacuum switch for adjusting the maximum vacuum level.
- A vacuum gauge for reading the vacuum level.
- A switchgear enclosed in a special casing.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
The vacuum level, preset via the mini vacuum switch is automatically maintained in the tank. Mini pumpsets can also be supplied with single-phase or DC electric motors and they are suited for equipping fixed or mobile working units that require vacuum, such as:
- Trolleys with vacuum cups for fixing and transporting glass and crystals.
- Vacuum clamping systems for ski maintenance, marble processing and for polishing copper, pewter or silver objects.
- Hoists with vacuum cups for lifting television sets and household appliances for glass installation in door and window frames, for laying ceramic tiles, for feeding sheet metal into presses, etc.

7.68
top next
Mini pumpsets do 06 and do 10

Mini pumpsets do 06 and do 10

Product codes: DO06VTS2 DO06VTS2M DO06VTS4 DO06VTS4M DO06VTS6 DO06VTS6M DO06VTS6CC DO10VTS2 DO10VTS2M DO10VTS4 DO10VTS4M DO10VTS6 DO10VTS6M DO10VTS6CC DO06VTL2 DO06VTL2M DO06VTL4 DO06VTL4M DO06VTL5 DO06VTL5M DO06VTL6CC DO10VTL2 DO10VTL2M DO10VTL4 DO10VTL4M DO10VTL5 DO10VTL5M DO10VTL6CC

top next
Mini pumpsets do 20

Mini pumpsets do 20

Product codes: DO20VTL5 DO20VTL5M DO20VTL6CC DO20VTL10 DO20VTL10M DO20VTL10/F DO20VTL10/FM DO20VTL15/F DO20VTL15/FM DO20VTL20/F DO20VTL20/FM DO20MV20 DO20MV20M

7.71
top next
Horizontal pumpsets – general description

Horizontal pumpsets – general description

As a standard, these pumpsets are built with various capacities and they are composed of:
- A horizontal welded sheet steel tank with perfect vacuum seal.
- A rotating vane vacuum pump to be selected according to the required suction
capacity and vacuum degree.
- A vacuum switch for adjusting the vacuum level within which to operate.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- A switchgear enclosed in a special plastic casing for tanks from 25 to 50 litres
and in a watertight metal casing for tanks of 100 litres upwards.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
The vacuum level, preset via the mini vacuum switch is automatically maintained in the tank. The pump operation can be both continuous or automatic. Pumpsets are normally used for handling particularly heavy or valuable loads since, in case of electricity failure, they allow the vacuum cups to maintain the grip for a certain amount of time, according to the tank capacity. These pumpsets are recommended for multi-point applications, to centralise vacuum. These pumpsets offer many advantages in energy consumption, since the pump operates only when required by the machine.

7.72
top next
Horizontal pumpsets do 25 and do 50

Horizontal pumpsets do 25 and do 50

Product codes: DO25VTL5 DO25VTL5M DO25VTL6CC DO25VTL10 DO25VTL10M DO50VTL5 DO50VTL5M DO50VTL6CC DO50VTL10 DO50VTL10M

7.73
top next
Horizontal pumpsets do 100 and do 150

Horizontal pumpsets do 100 and do 150

Product codes: DO100VTL10/F DO100VTL10/FM DO100VTL15/F DO100VTL15/FM DO100VTL20/F DO100VTL20/FM DO100MV20 DO100MV20M DO150VTL25/FG DO150VTL30/FG DO150VTL35/FG DO150MV40 DO150VTL50/G1 DO150MV60 DO150VTL75/G1

7.74
top next
Horizontal pumpsets do 300 and do 500

Horizontal pumpsets do 300 and do 500

Product codes: DO300MV60 DO300VTL75/G1 DO300MV100 DO300VTL105/G1 DO300MV160R DO500MV100 DO500VTL105/G1 DO500MV160R DO500MV200R DO500MV300R

7.75
top next
Horizontal pumpsets do 1000

Horizontal pumpsets do 1000

Product codes: DO1000MV200R DO1000MV300R

7.76
top next
Horizontal safety pumpsets – general description

Horizontal safety pumpsets – general description

Safety pumpsets have been designed to centralise vacuum in all work environments such as hospitals, laboratories, etc. where vacuum must be guaranteed 24/7. They are composed of:
- A horizontal welded sheet steel tank with perfect vacuum seal.
- Two rotating vane vacuum pumps to be chosen according to the required suction capacity and vacuum level.
- Three vacuum switches, of which two for adjusting the vacuum level within which each pump must operate, and one for determining the minimum safety value, under which the alarm sets off.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- Two manual valves for pump exclusion.
- A manual valve for vacuum interception.
- A cock for condensation drainage.

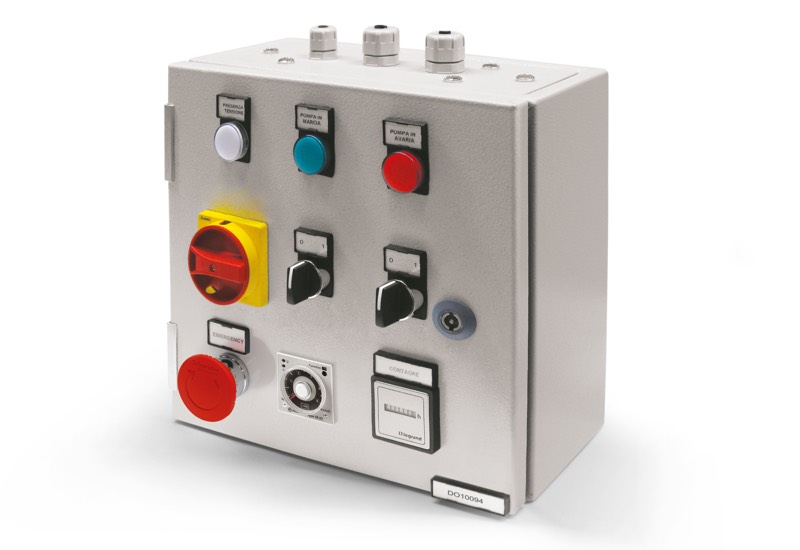

- A switchgear enclosed in a special watertight metal casing with switches for automatic or manual pump operation, an alarm device with sound and light signal, alarm-test buttons and hour-counter for counting the hours of actual operation of every single pump.
These pumpsets normally provide for the operation of one pump with subsequent automatic insertion of the second one for larger consumptions and when, for whatever reason, the plant vacuum level goes under the preset value.
The automatic timed inverter, located on the switchboard, accurately alternates the pump start-up, so that they are both subject to the same mechanical wear. The switchboard and remote alarm systems operate when the plant vacuum level is below the set safety value.

7.77
top next
Horizontal safety pumpsets dso 300 and dso 500

Horizontal safety pumpsets dso 300 and dso 500

Product codes: DSO300MV40 DSO300VTL50/G1 DSO300MV60 DSO300VTL75/G1 DSO300MV100 DSO300VTL105/G1 DSO500VTL50/G1 DSO500MV60 DSO500VTL75/G1 DSO500MV100 DSO500VTL105/G1 DSO500MV160R

7.78
top next
Horizontal safety pumpsets dso 1000

Horizontal safety pumpsets dso 1000

Product codes: DSO1000MV60 DSO1000VTL75/G1 DSO1000MV100 DSO1000VTL105/G1 DSO1000MV160R DSO1000MV200R DSO1000MV300R

7.79
top next

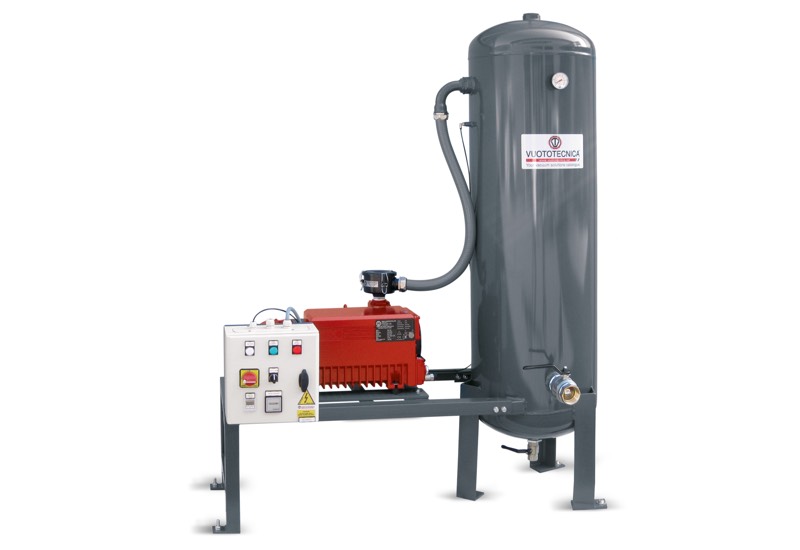

Vertical pumpsets – general description

Vertical pumpsets – general description

As a standard, these pumpsets are built with various capacities and they are composed of:
- A vertical welded sheet steel tank with perfect vacuum seal.
- A rotating vane vacuum pump to be selected according to the required suction capacity and vacuum degree.
- A vacuum switch for adjusting the vacuum level within which to operate.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- A switchgear enclosed in a special watertight metal casing.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
The vacuum level, preset via the mini vacuum switch is automatically maintained in the tank. The pump operation can be both continuous or automatic. These pumpsets are normally used for interconnecting several vacuum-operated machines and, for safety reasons, for vacuum handlers since, in case of electricity failure, they allow the vacuum cups to maintain the grip for an amount of time proportional to the tank capacity. As for energy consumption, in both cases these pumpsets offer many advantages, since the pump operates only to restore vacuum in the tank within the preset values and its interventions depend exclusively on the quantity of air that is actually sucked at the service.

7.80
top next
Vertical pumpsets dv 150 and dv 300

Vertical pumpsets dv 150 and dv 300

Product codes: DV150VTL25/FG DV150VTL30/FG DV150VTL35/FG DV150MV40 DV150VTL50/G1 DV150MV60 DV150VTL75/G1 DV300MV40 DV300VTL50/G1 DV300MV60 DV300VTL75/G1 DV300MV100 DV300VTL105/G1 DV300MV160R

7.81
top next
Vertical pumpsets dv 500 and dv 1000

Vertical pumpsets dv 500 and dv 1000

Product codes: DV500MV160R DV500MV200R DV500MV300R DV1000MV200R DV1000MV300R

7.82
top next
Vertical safety pumpsets – general description

Vertical safety pumpsets – general description

Safety pumpsets have been designed to centralise vacuum in all work environments such as hospitals, laboratories, etc. where vacuum must be guaranteed 24/7. They are composed of:
- A vertical welded sheet steel tank with perfect vacuum seal.
- Two rotating vane vacuum pumps to be chosen according to the required suction capacity and vacuum level.
- Three vacuum switches, of which two for adjusting the vacuum level within which each pump must operate, and one for determining the minimum safety value, under which the alarm sets off.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- Two manual valves for pump exclusion.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
- A switchgear enclosed in a special watertight metal casing with switches for automatic or manual pump operation, an alarm device with sound and light signal, alarm-test buttons and hour-counter for counting the hours of actual operation of every single pump.
These pumpsets normally provide for the operation of one pump with subsequent automatic insertion of the second one for larger consumptions and when, for whatever reason, the plant vacuum level goes under the preset value. The automatic timed inverter, located on the switchboard, accurately alternates the pump start-up, so that they are both subject to the same mechanical wear. The switchboard and remote alarm systems operate when the plant vacuum level is below the set safety value.

7.83
top next
Vertical safety pumpsets dsv 150 and dsv 300

Vertical safety pumpsets dsv 150 and dsv 300

Product codes: DSV150VTL10/F DSV150VTL15/F DSV150VTL20/F DSV150MV20 DSV150VTL25/FG DSV150VTL30/FG DSV150VTL35/FG DSV300MV40 DSV300VTL50/G1 DSV300MV60 DSV300VTL75/G1 DSV300MV100 DSV300VTL105/G1

7.84
top next
Vertical safety pumpsets dsv 500 and dsv 1000

Vertical safety pumpsets dsv 500 and dsv 1000

Product codes: DSV500MV60 DSV500VTL75/G1 DSV500MV100 DSV500VTL105/G1 DSV500MV160R DSV1000MV160R DSV1000MV200R DSV1000MV300R

7.85
top next
Vertical safety pumpsets dsv 2000

Vertical safety pumpsets dsv 2000

Product codes: DSV2000MV200R DSV2000MV300R

7.86
top next
Mini pumpset tanks

Mini pumpset tanks

Mini pumpset tanks are horizontal and have a rectangular section. They are made with welded sheet steel with perfect vacuum seal and varnished with special corrosion and water condensation-resistant paint. They are set for the installation of a vacuum pump and a switchgear to be selected from those listed in the table. They are equipped with:
- A mini vaccum switch for adjusting the maximum vacuum level.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- A check valve adjusted to the pump
- A manual valve for vacuum interception.
- A cock for condensation drainage.
- Hoses, fittings and screws for fixing the pump to the tank. Available with a 6, 10 and 20 litre volume.
Product codes: DO0601 DO1001 DO2001 DO2002

top next
Tanks for horizontal pumpsets with one vacuum pump

Tanks for horizontal pumpsets with one vacuum pump

Horizontal pumpset tanks have a circular section. They are made with welded sheet steel with perfect vacuum seal and are varnished with special corrosion and water condensation-resistant paint. They are set for the installation of a vacuum pump and a switchgear to be selected among those in the table, and are equipped with:
- A vacuum switch for adjusting the vacuum level within which to operate.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- A check valve for the pumps that do not have them.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
- Hoses, fittings and screws for fixing the pump to the tank. Available with various volumes, from 25 to 1000 litres.
Product codes: DO2501 DO2502 DO5001 DO5002 DO10001 DO10002 DO15001 DO15002 DO15003 DO30002 DO30003 DO30004 DO30005 DO50001 DO50004 DO50003 DO50002 DO100002

top next
Tanks for horizontal pumpsets with two vacuum pumps

Tanks for horizontal pumpsets with two vacuum pumps

Horizontal pumpset tanks have a circular section. They are made with welded sheet steel with perfect vacuum seal and are varnished with special corrosion and water condensation-resistant paint. They are set for the installation of two vacuum pumps and a switchgear to be selected among those in the table, and are equipped with:
- A vacuum switch for adjusting the vacuum level within which to operate.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- Two check valves for the pumps that do not have them.
- Two manual valves for pump exclusion.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
- Hoses, fittings and screws for connecting and fixing the pumps to the tank. Available with various volumes, from 300 to 1000 litres.
Product codes: D2030001 D2030003 D2030004 D2030002 D2050001 D2050002 D2050004 D2050003 D2050005 D20100002 D20100004 D20100003 D20100005 D20100006

top next
Tanks for horizontal safety pumpsets with two vacuum pumps

Tanks for horizontal safety pumpsets with two vacuum pumps

Horizontal safety pumpset tanks have a circular section. They are made with welded sheet steel with perfect vacuum seal and are varnished with special corrosion and water condensation-resistant paint. They are set for the installation of two vacuum pumps and a switchgear, to be selected among those in the table, and are equipped with:
- Three vacuum switches, of which two are for adjusting the vacuum level within which each pump must operate and one is for determining the minimum safety value, under which the alarm sets off.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- Two check valves for the pumps that do not have them.
- Two manual valves for pump exclusion.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
- Hoses, fittings and screws for connecting and fixing the pumps to the tank. Available with various volumes, from 300 to 1000 litres.
Product codes: DSO30001 DSO30003 DSO30004 DSO50001 DSO50002 DSO50004 DSO50003 DSO50005 DSO100002 DSO100004 DSO100003 DSO100005 DSO100006

top next
Tanks for vertical pumpsets with one vacuum pump

Tanks for vertical pumpsets with one vacuum pump

Vertical pumpset tanks have a circular section and are made with welded sheet steel with perfect vacuum seal, while the pump support frame, which is welded to the tank, is made with profiled steel. Both the tank and the support frame are varnished with special corrosion and water condensation-resistant paint.
They are set for the installation of a vacuum pump and a switchgear to be selected among those in the table, and are equipped with:
- A vacuum switch for adjusting the vacuum level within which to operate.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- A check valve for the pumps that do not have them.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
- Hoses and fittings for connecting the pump to the tank and screws for fixing it to the support frame. Available with various volumes, from 150 to 1000 litres.
Product codes: DV15001 DV15002 DV15003 DV30001 DV30004 DV30002 DV30003 DV50002 DV50003 DV100003

top next
Tanks for vertical pumpsets with two vacuum pumps

Tanks for vertical pumpsets with two vacuum pumps

Vertical pumpset tanks have a circular section and are made with welded sheet steel with perfect vacuum seal, while the pump support frame, which is welded to the tank with volume up to 500 litres and is autonomous over that capacity, is made with profiled steel. Both the tank and the support frame are varnished with special corrosion and water condensation-resistant paint.
They are set for the installation of two vacuum pumps and a switchgear, to be selected among those in the table, and are equipped with:
- A vacuum switch for adjusting the vacuum level within which to operate.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- Two check valves for the pumps that do not have them.
- Two manual valves for pump exclusion.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
- Hoses and fittings for connecting the pumps to the tank and screws for fixing them to the support frame.
Available with various volumes, from 150 to 2000 litres.
Product codes: D2V15001 D2V15003 D2V15002 D2V30001 D2V30002 D2V30003 D2V50001 D2V50003 D2V50002 D2V50004 D2V100001 D2V100002 D2V200001

top next
Tanks for vertical safety pumpsets with two vacuum pumps

Tanks for vertical safety pumpsets with two vacuum pumps

Vertical safety pumpset tanks have a circular section and are made with welded sheet steel with perfect vacuum seal, while the pump support frame, which is welded to the tanks with a volume up to 500 litres and is autonomous above that volume, is made with profiled steel. Both the tank and the support frame are varnished with special corrosion and water condensation-resistant paint. They are set for the installation of two vacuum pumps and a switchgear, to be selected among those in the table, and are equipped with:
- Three vacuum switches, of which two are for adjusting the vacuum level within which each pump must operate in order to determin the minimum safety value, under which the alarm sets off.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- Two check valves for the pumps that do not have them.
- Two manual valves for pump exclusion.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
- Hoses and fittings for connecting the pumps to the tank and screws for fixing them to the support frame. Available with various volumes, from 150 to 2000 litres.
Product codes: DSV15001 DSV15003 DSV15002 DSV30001 DSV30002 DSV30003 DSV50001 DSV50003 DSV50002 DSV50004 DSV100001 DSV100002 DSV200001

top next
Tanks for vertical safety pumpsets with three vacuum pumps

Tanks for vertical safety pumpsets with three vacuum pumps

Vertical safety pumpset tanks have a circular section and are made with welded sheet steel with perfect vacuum seal, while the pump support frame, which is welded to the tanks with a volume up to 500 litres and is autonomous above that volume, is made with profiled steel. Both the tank and the support frame are varnished with special corrosion and water condensation-resistant paint. They are set for the installation of three vacuum pumps and a switchgear to be selected among those in the table, and are equipped with:
- Four vacuum switches, of which three are for adjusting the vacuum level within which each pump must operate and one is for determining the minimum safety value, under which the alarm sets off.
- A vacuum gauge for a direct reading of the vacuum level in the tank.
- Three check valves for the pumps that do not have them
- Three manual valves for pump exclusion.
- A manual valve for vacuum interception.
- A cock for condensation drainage.
- Hoses and fittings for connecting the pumps to the tank and screws for fixing them to the support frame. Available with various volumes, from 300 to 2000 litres.
Product codes: DS3V30001 DS3V50001 DS3V50002 DS3V50003 DS3V100001 DS3V100002 DS3V200001

top next
Support frames for two vacuum pumps

Support frames for two vacuum pumps

This frame is made with profiled steel and varnished with special weather-resistant paints. It is suited for assembling two vacuum pumps and their switchgear.
Product codes: 00DSV15 00DSV16 00DSV17 00DSV18

7.115
top next
Support frames for three vacuum pumps

Support frames for three vacuum pumps

This frame is made with profiled steel and varnished with special weather-resistant paints. It is suited for assembling three vacuum pumps and their switchgear.
Product codes: 00DSV19 00DSV20 00DSV21 00DSV22

7.116
top next
Vacuum pump and pumpset manifolds

Vacuum pump and pumpset manifolds

These manifolds are made to distribute the vacuum generated by the pumps and pumpsets to several services. They are composed of a varnished steel tubular onto which the interception valves and the connections to the vacuum level reading and control devices are installed. The manifolds described in these pages are standard. Upon request, they can be supplied with different shapes and sizes.
Product codes: COLL0103 COLL0104 COLL0105 COLL0106 COLL0107 COLL0203 COLL0205 COLL0207 COLL0303 COLL0305 COLL0307

top next
Mini pumpset switchgear

Mini pumpset switchgear

The mini pumpset switchgear is enclosed in a special plastic casing and it can manage a vacuum pump with a maximum power of 1 KW with AC and 0.5 KW with DC as well as automatically maintain the vacuum level, set with the vacuum switch, in the tank. It is equipped with a remote control switch with adjustable thermal protection, a transformer for low voltage auxiliary command power supply (with AC only), a line switch with indicator light and a deviator for the automatic or continuous pump operation.
Product codes: DO0690 DO0692 DO0693

7.119
top next
Switchgear for pumpsets with one pump

Switchgear for pumpsets with one pump

The pumpset switchgear is enclosed in a special watertight metal casing and can manage a vacuum pump with a power up to 3 KW, or from 4 to 7.5 KW and it automatically maintains the vacuum level, set with the vacuum switch, in the tank. It is equipped with fuses, remote control switch with thermal protection, a transformer for low voltage auxiliary command power supply, a line switch with indicator light, a changeover switch for the automatic or continuous pump operation and an hour-counter for measuring the actual pump operation time.
Product codes: DO10089 DO10090 DO10091

7.119
top next
Switchgear for pumpsets with two pumps

Switchgear for pumpsets with two pumps

The pumpset switchgear, is enclosed in a special watertight metal casingand it manages two vacuum pumps, each with a power up to 3 KW, or from 4 to 7.5 KW and automatically maintains the vacuum level, set with the vacuum switch, in the tank. It is equipped with fuses, two remote control switches with thermal protection, a transformer for low voltage auxiliary command power supply, a line switch with indicator light, two change-over switches for automatic or continuous pump operation and two hour-counters for measuring the actual pump operation time.
Product codes: D2V15090 D2V15092

7.120
top next
Switchgear for safety pumpsets : with two pumps

Switchgear for safety pumpsets : with two pumps

The safety pumpset switchgear is enclosed in a special watertight metal casing and it manages two vacuum pumps, each with a power up to 3 KW, or from 4 to 7.5 KW and it automatically maintains the vacuum level, set with the vacuum switches, in the tank. It is equipped with fuses, two remote control switches with thermal protection, a transformer for low voltage auxiliary command power supply, an automatic time-set inverter, electrical connection terminal blocks and, on the panel, a main switch with door-opening unit, line indicator lights and pump service, two change-over switches for manual or automatic operation, an alarm device with sound and light signal, alarmtest buttons and two hour-counters for measuring the actual pump operation time. These switchgears normally provide for the operation of one pump, with the subsequent automatic insertion of the second one for larger consumptions and when, for whatever reason, the plant vacuum level goes below the preset value. An automatic time-set inverter accurately alternates the start-up of the pumps, so that they are both subject to the same mechanical wear. The switchboard and the remote alarm systems start up when the plant vacuum level goes below the set minimum safety level.
Product codes: DSO30090 DSO30091

7.120
top next
Switchgear for safety pumpsets : with three pumps

Switchgear for safety pumpsets : with three pumps

The safety pumpset switchgear is enclosed in a special watertight metal casing and it manages three vacuum pumps, each with a power up to 3 KW, or from 4 to 7.5 KW and it automatically maintains the vacuum level, set with the vacuum switches, in the tank. It is equipped with fuses, three remote control switches with thermal protection, a transformer for low voltage auxiliary command power supply, an automatic time-set inverter, electrical connection terminal blocks and, on the control panel, a main switch with door-opening unit, line indicator lights and pump service, three change-over switches for manual or automatic operation, an alarm device with sound and light signal, alarm-test buttons and three hour-counters for measuring the actual pump operation time. These switchgears normally provide for the operation of one pump, with subsequent automatic insertion of the other two for larger consumptions and when, for whatever reason, the plant vacuum level goes below the preset value. An automatic time-set inverter, accurately alternates the start-up of the pumps, so that they are both subject to the same mechanical wear. The switchboard and the remote alarm systems start up when the plant vacuum level goes below the set minimum safety level.
Product codes: DSO30095 DSO30096

7.121
top next
Switchgear for safety pumpsets with four pumps

Switchgear for safety pumpsets with four pumps

The safety pumpset switchgear is enclosed in a special watertight metal casing and it manages four vacuum pumps, each with a power up to 3 KW, or from 4 to 7.5 KW and it automatically maintains the vacuum level, set with the vacuum switches, in the tank. It is equipped with fuses, four remote control switches with thermal protection, a transformer for low voltage auxiliary command power supply, an automatic time-set inverter, electrical connection terminal blocks and, on the control panel, a main switch with door-opening unit, line indicator lights and pump service, four change-over switches for manual or automatic operation, an alarm device with sound and light signal, alarm-test buttons e four hour-counters for measuring the actual pump operation time. These switchgears normally provide for the operation of two pumps and the subsequent automatic insertion of the other two for larger consumptions and when, for whatever reason, the plant vacuum level goes below the preset value. An automatic time-set inverter, accurately alternates the start-up of the pumps, so that they are both subject to the same mechanical wear. The switchboard and the remote alarm systems start up when the plant vacuum level goes below the set minimum safety level.
Product codes: DSV200090 DSV200091

7.121
top next
Switchgear for safety pumpsets: single-pump safety switchgear

Switchgear for safety pumpsets: single-pump safety switchgear

The need to use the same vacuum pump in various spots in the work environment, such as, for example, a shipyard, has led us to creating this mobile switchgear that allows for polarity reversal in presence of current, as well as for time setting pump operation and the automatic start-up restoration in case of accidental black-out. The switchgear is enclosed in a special watertight metal casing and it is composed of fuses, remote control switches with thermal protection and a transformer for low voltage auxiliary command power supply. On the casing lid, on the other hand there are installed:
- A line switch with indicator light;
- A change-over switch for pump start-up with indicator light;
- A change-over switch for polarity reversal;
- An emergency button;
- A timer for setting the duration of pump operation;
- An hour-counter for counting the actual pump operation time;
- A malfunction warning light.
This switchgear is available in two versions: the first one managing a vacuum pump with a power up to Kw and the second one a vacuum pump with a power ranging from 4 to 7.5 Kw.
Product codes: DO10093 DO10094

7.122
