Vacuum valves and solenoid valves

Suction valves for vacuum press bags

Suction valves for vacuum press bags

The suction valves described in this page have been designed for a quick vacuum connection on press bags for composite fibre products.
These valves are composed of a steel distributor, to be inserted inside the bag, equipped with a cam housing suitable for the quick coupler for the vacuum connection. The latter is made with reeded and anodised aluminium and is easily coupled with the distributor by simply rotating it on its axis by 90°, once it’s been inserted.
A silicon seal to be placed between the two elements and the press bag, guarantees a perfect vacuum seal.
Manual 2-way valves, quick couplers or simply flexible pipe fittings can be assembled onto these valves.
They are currently available in the two versions indicated in the table, but can be provided in different sizes and shapes upon request for a minimum amount.
Product codes: VSS3/8 VSS1/2

4.01
top next

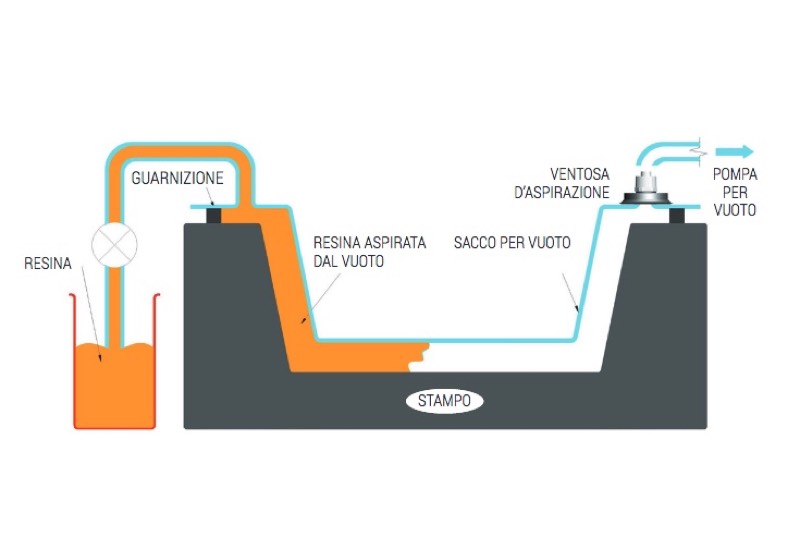

Suction valves for resin infusion mould

Suction valves for resin infusion mould

These suction valves, once laid on the resin infusion mould connections, allow a quick vacuum connection and guarantee a perfect seal.
They are made with silicon rubber, while their support is made with anodised aluminium.
Manual 2-way valves, quick couplers or simply flexible pipe fittings can be assembled onto these valves.
They are available in the two versions shown below, but can be supplied in different sizes and shapes upon request.
Product codes: 088515S1/2 088515S3/4

4.02
top next
Plunger valves

Plunger valves

Plunger valves are composed of a cylindrical brass body, a steel plunger with a conical valve and a thrust spring.
Connected to vacuum, they are normally closed.
They activate suction, thus creating vacuum, only when the plunger is in contact with the gripping surface.
They are available in various versions, all suitable for our vacuum cups.
Product codes: 190110 190111 190112 190210 190310 190410

4.03
top next
Mechanically operated valves

Mechanically operated valves

These valves are composed of an anodised aluminium body, a steel pin solidly connected to a conical shutter and of a thrust spring.
Connected to vacuum, they are normally closed.
They activate suction, thus creating vacuum, only when the pin is activated by the cams or any other mechanical device.
They can be used as an alternative to plunger valves when these cannot be assembled onto the vacuum cups.
Product code: 190230

4.04
top next
Valves with ball shutter

Valves with ball shutter

Valves with ball shutters activate suction, creating vacuum in the cups on which they are applied, only when the load to be held activates the sealing shutter.
They are made of an anodised aluminium body, a nylon ball shutter, a calibrated thrust spring and a threaded brass closing plug.
When properly calibrated, they guarantee a perfect vacuum seal.
They are recommended for making vacuum operated clamping surfaces.
They can be supplied in different sizes and shapes upon request and for a minimum quantity to be defined in the order.
Product code: 220110

4.05
top next
Shut-off valves

Shut-off valves

They are special unidirectional valves that, when properly calibrated, allow a certain quantity of fluid to go through, afterwards, if the fluid continues to go through, they automatically close.
These shut-off valves have been specially designed to be applied on the cups and, in case of lack of objects to be gripped, of defective grips or leaks, they automatically deactivate suction, thus preventing any reduction of the vacuum level on the other gripping cups.
They are provided calibrated and commissioned, ready to be installed.
They are made with anodised aluminium and can be supplied in different shapes and sizes upon request and for a minimum quantity to be defined in the order.
Product codes: 140105 140110 140115 140210 140310 140510 140111 140211 140311

top next
Check valves

Check valves

These unidirectional valves are made with bronze and brass with a seal in NBR nitrile rubber or, upon request, in Viton®.
To ensure a practical assembly they are available in two versions: horizontal and vertical.
Fitted on the vacuum pump suction inlet, as soon as the latter stop, these valves prevent the air from returning in the plant (piping, tanks, autoclaves, vacuum gripping systems, vacuum cups, etc.), guaranteeing a perfect seal and preventing the oil from returning into the pump stator, which would cause considerable damages.
Therefore, check valves are mandatory on all vacuum pumps with lubrication that do not have them built-in.
Product codes: 100210 100310 100410 100510 100610 100710 100810 100111 100211 100311 100411 100511 100611 100711 100811

4.08
top next
Membrane check valves

Membrane check valves

These valves have the same features of the other check valves, but they are made with anodised aluminium, which makes them particularly light.
The seal is guaranteed by an EPDM membrane instead of the metal shutter with NBR seal.
For these features and for their modern design, they are recommended for pneumatic vacuum generators and, of course, on vacuum pumps.
Product codes: 100115 100215 100315 100415 100515 130111 130211 130311

4.09
top next
Manual 2-way miniature vacuum valves

Manual 2-way miniature vacuum valves

These small manual valves are suited for intercepting vacuum on vacuum cup holders and any small utility in which solenoid valves cannot be installed.
They feature a hexagonal nickel-plated brass body, a chromed brass ball shutter and a seal in plastic material to guarantee a perfect seal.
A lever on the ball shutter, rotated by 90°, allows opening or closing the valve with no effort.
Product codes: 100115 100215 100315 100415 100515 130111 130211 130311

4.09
top next
Manual 2-way vacuum valves

Manual 2-way vacuum valves

These manual valves are used for intercepting vacuum in all those plants where solenoid valves cannot be installed.
They feature a die-cast nickel-plated brass body, a chromed brass ball shutter and teflon seals to guarantee perfect seal even at high temperatures.
A lever on the ball shutter, rotated by 90°, allows opening or closing the valve with no effort.
Product codes: 130110 130210 130310 130410 130510 130610 130710 130810 130910

4.10
top next
Manual 3-way vacuum valves

Manual 3-way vacuum valves

These manual valves are used for intercepting vacuum in all those plants where solenoid valves cannot be installed.
They feature a die-cast nickel-plated brass body, a chromed brass ball shutter and teflon seals to guarantee perfect seal even at high temperatures.
A lever on the ball shutter, rotated by 90°, allows opening or closing the valve with no effort.
Product codes: 130115 130215 130315 130415 130515 130615 130715

4.11
top next
Pilot-operated 3-way vacuum valves

Pilot-operated 3-way vacuum valves

These 2-position, 3-way valves feature pneumatically activated conical shutters.
They can be normally used either open or closed.
They are recommended in all the cases that require a quick exchange between the vacuum pump suction and the air inlet into the circuit for a quick restoration of the atmospheric pressure.
They are composed of an anodised aluminium body, two vulkollan® shutters assembled onto a stainless steel stem, a membrane for servo-control made with special compounds and a thrust spring for the shutter return.
These valves allow reducing frictions and internal dynamic stresses to the minimum. The result being a high response speed and a guarantee of long lasting duration.
Technical features
Working pressure: from 0.5 to 3000 mbar abs.
Servo-control pressure: see table
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070131 070231 070331 070431 070531 070631

top next
3-Way vacuum solenoid pilot valves

3-Way vacuum solenoid pilot valves

These direct-drive valves have been specially designed for vacuum and are normally closed.
They are composed of an anodised aluminium body, where the connections and the passage orifices are located, and of an actuator which is activated by an electric coil.
The solenoid pilot valve shutter in NBR nitrile rubber or Vulkollan®, is an integral part of the actuator mobile core. Both the orifices of the 2-way solenoid pilot valves have the same size, while those of the 3-way ones have a 3mm outlet diameter, obtained through the tube. The very low reaction time allows carrying out a very high number of cycles per minute.
The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 for inserted connector.
Allowed tolerance on the voltage nominal value: ±10%.
Max. absorption: 16.5 V.A. with AC and 16 W with DC.
The electric coil can be rotated by 360°. The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
Technical features
Working pressure: from 1 to 1500 mbar abs.
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070116 070216 070316

top next
2-Way vacuum solenoid pilot valves

2-Way vacuum solenoid pilot valves

These direct-drive valves have been specially designed for vacuum and are normally closed.
They are composed of an anodised aluminium body, where the connections and the passage orifices are located, and of an actuator which is activated by an electric coil.
The solenoid pilot valve shutter in NBR nitrile rubber or Vulkollan®, is an integral part of the actuator mobile core. Both the orifices of the 2-way solenoid pilot valves have the same size, while those of the 3-way ones have a 3mm outlet diameter, obtained through the tube. The very low reaction time allows carrying out a very high number of cycles per minute.
The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 for inserted connector.
Allowed tolerance on the voltage nominal value: ±10%.
Max. absorption: 16.5 V.A. with AC and 16 W with DC.
The electric coil can be rotated by 360°. The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
Technical features
Working pressure: from 1 to 1500 mbar abs.
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070120 070220 070320

top next
Direct drive 2-way vacuum solenoid valves

Direct drive 2-way vacuum solenoid valves

These state of the art solenoid valves feature minimal overall dimensions and high volumetric efficiency and high response speed at any vacuum level.
They are the result of an attentive choice of materials, state of the art constructive techniques and of the in-depth knowledge of our technicians.
This series of solenoid valves is patented.
The DDN solenoid valves are direct drive, 2-way, 2-position valves with direct drive, double shutter and they are normally closed.
They are composed of hot pressed brass body where the connections are located, an internal mechanism with double shutter and of an actuator activated by an electric coil. The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 with inserted connector.
Allowed tolerance on the voltage nominal value: ±10%.
Max. absorption: 16.5 V.A. with AC and 16 W with DC (except for DDN 25 which cannot be activated with DC).
The electric coil can be rotated by 360°.
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
For a correct operation, we recommend installing the solenoid valve upside-down.
DDN solenoid valves are particularly indicated for degassers, autoclaves, vacuum thermo-welders and in all applications where suction has to be controlled separately from the air inlet into circuit.
Technical features
Working pressure: from 0.5 to 1500 mbar abs.
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: DDN14 DDN25

4.19
top next
Servo-controlled 3-way vacuum solenoid valves

Servo-controlled 3-way vacuum solenoid valves

The 3-way vacuum solenoid valves in this series are 2-position valves with pneumatically servo-controlled conical shutters.
They can normally be used either open or closed.
They are composed of an anodised aluminium body, two Vulkollan® shutters assembled onto a stainless steel stem, a membrane for servo-control made with special compounds and a thrust spring for the shutter return; an actuator activated by an electric coil managed the compressed air supply.
These valves allow reducing frictions and internal dynamic stresses to the minimum. The result being a high response speed and a guarantee of long lasting duration. The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 for inserted connector.
Allowed tolerance on the voltage nominal value: ±10%.
Max. absorption: 16.5 V.A. in c.a. e 16 W in c.c.
The electric coil can be rotated by 360°.
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal. 3-way vacuum solenoid valves are usually used for intercepting vacuum on feeders and cup stackers, robots, sheet feeders, sack openers and in all those cases where a quick response is needed between suction and the air inlet into the circuit, for a quick restoration of the atmospheric pressure. They can be supplied upon request with an SM device for manually opening and closing the solenoid valves already installed.
Technical features
Working pressure: from 0.5 to 3000 mbar abs.
Servo-control pressure: see table
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070111 070211 070311 070411 070511 070611

top next
Servo-controlled 3-way vacuum solenoid valves with 2 electric coils

Servo-controlled 3-way vacuum solenoid valves with 2 electric coils

These solenoid valves have the same function and the same structure as the previous ones. Their distinctive features are the two coils that with a simple electric impulse, exchange the shutter positions and keep them in this position till the next impulse even in absence of compressed air at the servo control and of electric current.
For this feature, they are especially indicated in all those cases which require a safe connection to the vacuum source, even in absence of electric or pneumatic supply.
The standard electric coils are fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 for inserted connector.
Allowed tolerance on the voltage nominal value: ±10%.
Max. absorption: 8 ÷ 16.5 V.A. with AC and 6.5 ÷ 16 W with DC.
The electric coils can be rotated by 360°. The connector can be rotated by 180° coils and can be supplied, upon request, with Led lights, anti-interference with protection devices against overvoltage and polarity reversal.
Technical features
Working pressure: from 0.5 to 3000 mbar abs.
Servo-control pressure: see table
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070151 070251 070351 070451 070551 070651

top next
Direct drive 3-way vacuum solenoid valves

Direct drive 3-way vacuum solenoid valves

These direct drive 3-way, 2-position vacuum solenoid valves feature conical shutters servo-controlled by the vacuum.
As a standard they are normally closed, but they can be supplied normally open upon request. They are composed of an anodised aluminium body where the connections are located, two silicon shutters assembled onto a stainless steel stem and a membrane in special reinforced compound. An actuator activated by an electric coil manages the vacuum at the servo-control. The operating principle of these solenoid valves is based on the pressure differential between the vacuum pump or generator and the pressure of the sucked air.
By addressing this “differential pressure” to the servo-control via the actuator, the shutters can be controlled without compressed air or springs. Due to their operating principle, they are not recommended on plants with low vacuum levels (below 850 mbar abs., equal to 15 % of vacuum).
The lack of springs, frictions and internal dynamic stresses favours a high response speed and guarantees long lasting operation. The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 for inserted connector.
Allowed tolerance on the voltage nominal value: ±10%.
Max. absorption: 16.5 V.A. with AC and 16 W with DC.
The electric coil can be rotated by 360°.
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
The solenoid valves in this series, along with the uses described for the 07 .. 11 series can be used on plants with no compressed air. They can be provided, upon request, with SM device for manually opening or closing the solenoid valve already installed.
The solenoid valve must be always chosen according to the capacity and, therefore, to the vacuum pump or generator suction connection.
Technical features
Working pressure: from 0.5 to 850 mbar abs.
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070340NC 070340NO 070440NC 070440NO 070540NC 070540NO 070640NC 070640NO

top next
Solenoid valve accessories and spare parts - Electric coils

Solenoid valve accessories and spare parts - Electric coils

Electric coils are windings of copper wire on nylon coils fully plasticised in synthetic resin which activate the electromagnetic actuators with which the solenoid valves are provided. Crossed by an electric current, these coils generate a magnetic field which activates the mobile core inside the actuators; the mobile core features a built-in or fixed shutter which cause the valve commutation by opening and closing their orifices.
The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 6.3 mm 3-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650).
Protection degree IP 54; IP 65 with inserted connector.
Allowed tolerance on the voltage nominal value: ±10%.
Allowed tolerance on the frequency value: ±5%
Room temperature: from -10 to +45 °C
Fluid temperature: from -10 to +95 °C
Electric absorption: 8 ÷ 16.5 V.A. with AC and 6.5 ÷ 16 W with DC.
Electric coils can be rotated by 360°.
Product codes: 0007172 0007173 000703N 000704N 000705N 000706N 0007256N 0007257N 0007258N 0007259N

top next

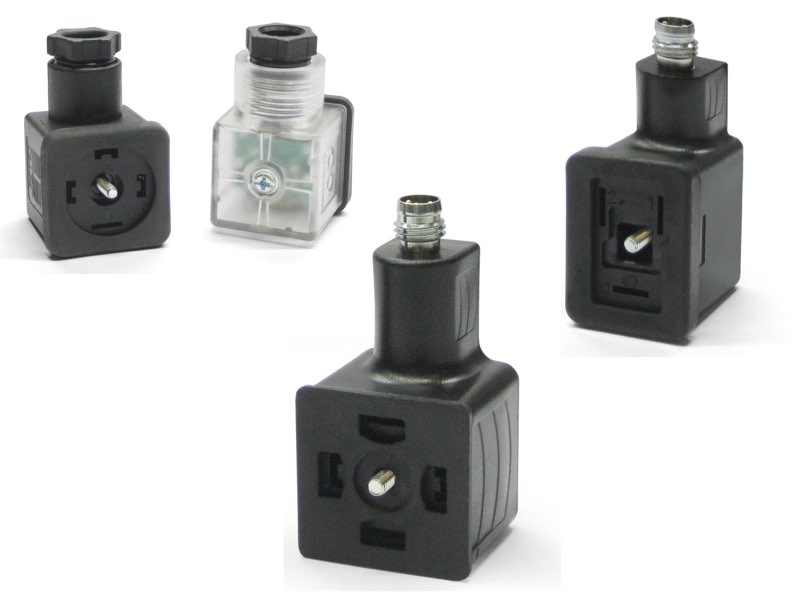

Solenoid valve accessories and spare parts - Electric coil connectors

Solenoid valve accessories and spare parts - Electric coil connectors

Connectors are fundamental for bringing electric current to the solenoid valve coils.
They are available in the simple plug version installed as standard and, upon request, with LEDs to signal the presence of voltage, with anti-interference circuits, protection devices against overvoltage and polarity reversal.
When correctly installed, all connectors provide full protection against water jets, according to EN 60529 standards (protection class IP 65).
Moreover, they meet VDE 0110-1 /89 standards, working voltage up to 250 V, overvoltage category II, Degree of use 3, regarding insulation class.
In all contacts, a snap joint between contact holders and the external protection guarantees a safe locking and easy assembly.
A safe locking is essential for guaranteeing the operator full protection when handling the connector.
The contact holder can be easily extracted from its casing simply using a screwdriver.
This operation also allows orienting the earthing contact in the desired direction.
Product codes: 0007174 0007260 000763 0007101 0007186

top next
Solenoid valve accessories and spare parts - Sm device for manually opening and closing the solenoid valves

Solenoid valve accessories and spare parts - Sm device for manually opening and closing the solenoid valves

This small cam, which can be activated by a screwdriver, acts on the mobile core of the actuators causing their commutation.
This device is installed, upon request, on compressed-air pilot-operated 3-way solenoid valves art. 07 .. 11 or vacuum solenoid valves art. 07 .. 40, to allow their opening and closing in absence of electricity.
To order it, all you have to do is add the letters SM to the article of the solenoid valve.
Product codes: 000763 0007101 0007186

4.34
top next

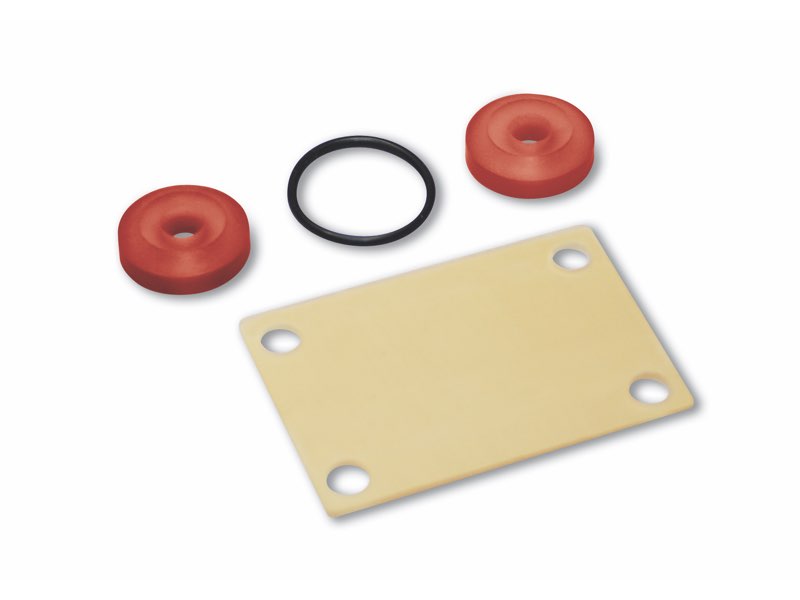

Solenoid valve accessories and spare parts - Valve and solenoid valve pilot seal and membrane kit

Solenoid valve accessories and spare parts - Valve and solenoid valve pilot seal and membrane kit

Sealing kits are composed of a membrane, shutters and standard O-rings installed on our compressed air and vacuum 3-way valves and solenoid valves.
In presence of very hot fluids (up to 250 °C) or corrosive fluids, we can supply sealing kits in special compounds.
Please contact our technical department.
Product codes: 0007104 0007105 0007177 0007229 0007230 0007296 0007231 0007297 0007232 0007298 0007267 0007268 0007287 0007269 0007288 0007270 0007289 0007271 0007272 0007290 0007273 0007291 0007274 0007292 0007275 0007276 0007293 0007277 0007294 0007278 0007295 0007279 0007280 0007281

4.35
top next
Servo-controlled 3-way vacuum solenoid valves with low absorption electric coil

Servo-controlled 3-way vacuum solenoid valves with low absorption electric coil

The 3-way vacuum solenoid valves in this series feature two positions with pneumatically pilot-operated conical shutters. They can normally be used either open or closed. They are composed of an anodised aluminium body where the connections are located, two shutters in vulkollan® assembled onto a stainless steel stem, a special compound membrane for the servo-control and a spring for the shutter return. A solenoid pilot valve activated by a built-in electric coil, manages the compressed air supply.
The particular execution of these valves allows reducing frictions and internal dynamic stresses to the minimum, which results in a high response speed and a guarantee long lasting operation. The electric coil of the solenoid pilot valve is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 3 mm 2-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650)-C. Protection degree IP 54; IP 65 for inserted connector.
Available for voltages of 12-24V/50-60Hz and 12-24V/CC.
Allowed tolerance on the voltage nominal value: ±10%.
Maximum electric power: 2 W
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
A push-button device, built-in the solenoid pilot valve, allows manually opening and closing the solenoid valve. 3-way vacuum solenoid valves are usually used for intercepting the vacuum in vacuum cup feeders and palletisers, robots, bag openers and in all those cases which require a quick exchange between the vacuum pump suction and the air inlet in the circuit, for a quick restoration of the atmospheric pressure.
Technical features:
Working pressure: from 0.5 to 3000 mbar abs.
Servo-control pressure: see table
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070113 070213 070313 070413 070513 070613

top next
Servo-controlled 3-way vacuum solenoid valves with low absorption electric coil

Servo-controlled 3-way vacuum solenoid valves with low absorption electric coil

The 3-way vacuum solenoid valves in this series feature two positions with pneumatically pilot-operated conical shutters. They can normally be used either open or closed. They are composed of an anodised aluminium body where the connections are located, two shutters in vulkollan® assembled onto a stainless steel stem, a special compound membrane for the servo-control and a spring for the shutter return. A solenoid pilot valve activated by a built-in electric coil, manages the compressed air supply.
The particular execution of these valves allows reducing frictions and internal dynamic stresses to the minimum, which results in a high response speed and a guarantee long lasting operation. The electric coil of the solenoid pilot valve is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 3 mm 2-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650)-C. Protection degree IP 54; IP 65 for inserted connector.
Available for voltages of 12-24V/50-60Hz and 12-24V/CC.
Allowed tolerance on the voltage nominal value: ±10%.
Maximum electric power: 2 W
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
A push-button device, built-in the solenoid pilot valve, allows manually opening and closing the solenoid valve. 3-way vacuum solenoid valves are usually used for intercepting the vacuum in vacuum cup feeders and palletisers, robots, bag openers and in all those cases which require a quick exchange between the vacuum pump suction and the air inlet in the circuit, for a quick restoration of the atmospheric pressure.
Technical features:
Working pressure: from 0.5 to 3000 mbar abs.
Servo-control pressure: see table
Temperature of the sucked fluid: from -5 to +60 °C
Product code: 070813

4.39.1
top next
Servo-controlled 3-way vacuum solenoid valves

Servo-controlled 3-way vacuum solenoid valves

The 3-way vacuum solenoid valves in this series feature two positions with pneumatically pilot-operated conical shutters. They can normally be used either open or closed. They are composed of an anodised aluminium body where the connections are located, two shutters in vulkollan® assembled onto a stainless steel stem, a special compound membrane for the servo-control and a spring for the shutter return. A solenoid pilot valve activated by a built-in electric coil, manages the compressed air supply.
The particular execution of these valves allows reducing frictions and internal dynamic stresses to the minimum, which results in a high response speed and a guarantee long lasting operation. The electric coil of the solenoid pilot valve is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 3 mm 2-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650)-C. Protection degree IP 54; IP 65 for inserted connector.
Available for voltages of 12-24V/50-60Hz and 12-24V/CC.
Allowed tolerance on the voltage nominal value: ±10%.
Maximum electric power: 2 W
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
A push-button device, built-in the solenoid pilot valve, allows manually opening and closing the solenoid valve. 3-way vacuum solenoid valves are usually used for intercepting the vacuum in vacuum cup feeders and palletisers, robots, bag openers and in all those cases which require a quick exchange between the vacuum pump suction and the air inlet in the circuit, for a quick restoration of the atmospheric pressure.
Technical features:
Working pressure: from 0.5 to 3000 mbar abs.
Servo-control pressure: see table
Temperature of the sucked fluid: from -5 to +60 °C
Product code: 070811

4.39.2
top next
Servo-controlled 3-way vacuum solenoid valves

Servo-controlled 3-way vacuum solenoid valves

The 3-way vacuum solenoid valves in this series feature two positions with pneumatically pilot-operated conical shutters. They can normally be used either open or closed. They are composed of an anodised aluminium body where the connections are located, two shutters in vulkollan® assembled onto a stainless steel stem, a special compound membrane for the servo-control and a spring for the shutter return. A solenoid pilot valve activated by a built-in electric coil, manages the compressed air supply.
The particular execution of these valves allows reducing frictions and internal dynamic stresses to the minimum, which results in a high response speed and a guarantee long lasting operation. The electric coil of the solenoid pilot valve is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 3 mm 2-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650)-C. Protection degree IP 54; IP 65 for inserted connector.
Available for voltages of 12-24V/50-60Hz and 12-24V/CC.
Allowed tolerance on the voltage nominal value: ±10%.
Maximum electric power: 2 W
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
A push-button device, built-in the solenoid pilot valve, allows manually opening and closing the solenoid valve. 3-way vacuum solenoid valves are usually used for intercepting the vacuum in vacuum cup feeders and palletisers, robots, bag openers and in all those cases which require a quick exchange between the vacuum pump suction and the air inlet in the circuit, for a quick restoration of the atmospheric pressure.
Technical features:
Working pressure: from 0.5 to 3000 mbar abs.
Servo-control pressure: see table
Temperature of the sucked fluid: from -5 to +60 °C
Product code: 070911

4.39.3
top next
Servo-controlled 3-way vacuum solenoid valves with low absorption electric coil

Servo-controlled 3-way vacuum solenoid valves with low absorption electric coil

The 3-way vacuum solenoid valves in this series feature two positions with pneumatically pilot-operated conical shutters. They can normally be used either open or closed. They are composed of an anodised aluminium body where the connections are located, two shutters in vulkollan® assembled onto a stainless steel stem, a special compound membrane for the servo-control and a spring for the shutter return. A solenoid pilot valve activated by a built-in electric coil, manages the compressed air supply.
The particular execution of these valves allows reducing frictions and internal dynamic stresses to the minimum, which results in a high response speed and a guarantee long lasting operation. The electric coil of the solenoid pilot valve is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 3 mm 2-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650)-C. Protection degree IP 54; IP 65 for inserted connector.
Available for voltages of 12-24V/50-60Hz and 12-24V/CC.
Allowed tolerance on the voltage nominal value: ±10%.
Maximum electric power: 2 W
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
A push-button device, built-in the solenoid pilot valve, allows manually opening and closing the solenoid valve. 3-way vacuum solenoid valves are usually used for intercepting the vacuum in vacuum cup feeders and palletisers, robots, bag openers and in all those cases which require a quick exchange between the vacuum pump suction and the air inlet in the circuit, for a quick restoration of the atmospheric pressure.
Technical features:
Working pressure: from 0.5 to 3000 mbar abs.
Servo-control pressure: see table
Temperature of the sucked fluid: from -5 to +60 °C
Product code: 070913

4.39.4
top next
Servo-controlled 3-way vacuum solenoid valves with bistable impulse solenoid pilot valve and with low absorption electric coil

Servo-controlled 3-way vacuum solenoid valves with bistable impulse solenoid pilot valve and with low absorption electric coil

These solenoid valves have the same functions and structure as the previously described ones.
Their distinctive feature is a bistable impulse solenoid valve activated by a built-in low absorption electric coil which, at a simple electric impulse, exchanges the shutter position even in absence of electricity, until it receives a new impulse of opposite polarity. For this reason, they can only be supplied with DC electric coils.
They are particularly recommended in all those cases that require a safe connection to the vacuum source, even in absence of electricity.
The electric coil of the solenoid pilot valve is fully plasticised plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 3 mm 2-terminal electrical connections in compliance with EN 175301-803 (ex 43650)-C.
Protection degree IP 54; IP 65 for inserted connector.
Available for voltages of 12-24V/CC.
Allowed tolerance on the voltage nominal value: ±10%.
Maximum electric power: 1 W
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
The push-button device for their manual activation cannot be installed on these solenoid valves.
Technical features
Working pressure: from 0.5 to 3000 mbar abs.
Servo-control pressure: see table
Temperature of the sucked fluid: from -5 to +60 °C
product codes: 070153 070253 070353 070453 070553 070653

top next
Direct drive 3-way vacuum solenoid valves with low absorption electric coil

Direct drive 3-way vacuum solenoid valves with low absorption electric coil

The direct drive 3-way vacuum solenoid valves of this series feature two positions with conical shutters servo-controlled by the vacuum.
As a standard they are normally supplied closed, but upon request they can also be provided as normally open.
They are composed of an anodised aluminium body where the connections are located, two silicon shutters assembled onto a stainless steel stem and a membrane in special reinforced compound. A solenoid pilot valve activated by a built-in electric coil manages the servo-control vacuum. The operating principle of these solenoid valves is based upon the pressure differential between the vacuum pump or generator and the pressure of the sucked air. By directing this differential pressure to the servo-control via the solenoid pilot valve, it is possible to control the shutters with no need for compressed air or springs.
Due to their operating principle, these solenoid valves are not recommended for low vacuum level plants (below 850 mbar abs., equal to 15 % of vacuum). The absence of springs, frictions and internal dynamic stresses favours a high response speed and guarantees a long lasting operation.
The electric coil of the solenoid pilot valve is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 3 mm 2-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650) -C. Protection degree IP 54; IP 65 for inserted connector.
Available for voltages of 12-24V/50-60Hz and 12-24V/CC.
Allowed tolerance on the voltage nominal value: ±10%.
Maximum electric power: 2 W
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal. A push-button device built-in the solenoid pilot valve allows the manual opening and closing of the solenoid valve.
The solenoid valves of this series can be used in almost all the cases described for the 07 .. 11 series, and also on plants with no compressed air. The solenoid valve must always be chosen according to the capacity and, therefore, to the vacuum pump or generator suction connection.
Technical features
Working pressure: from 0.5 to 850 mbar abs.
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070343NC 070343NO 070443NC 070443NO 070543NC 070543NO

top next
3-Way vacuum solenoid valves with bistable impulse solenoid pilot valve and with low absorption electric coil

3-Way vacuum solenoid valves with bistable impulse solenoid pilot valve and with low absorption electric coil

These solenoid valves have the same functions and structure as the previously described ones.
Their distinctive feature is a bistable impulse solenoid valve activated by a built-in low absorption electric coil which, at a simple electric impulse, exchanges the shutter position even in absence of electricity, until it receives a new impulse of opposite polarity. For this reason, they can only be supplied with DC electric coils.
They are particularly recommended in all those cases that require a safe connection to the vacuum source, even in absence of electricity.
The electric coil of the solenoid pilot valve is fully plasticised plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 3 mm 2-terminal electrical connections in compliance with EN 175301-803 (ex 43650)-C. Protection degree IP 54; IP 65 for inserted connector.
Available for voltages of 12-24V/CC.
Allowed tolerance on the voltage nominal value: ±10%.
Maximum electric power: 1 W
The connector can be rotated by 180° on the coil and can be supplied, upon request, with Led lights, anti-interference circuit and/or with protection devices against overvoltage and polarity reversal.
The push-button device for their manual activation cannot be installed on these solenoid valves.
Technical features
Working pressure: from 0.5 to 850 mbar abs.
Temperature of the sucked fluid: from -5 to +60 °C
Product codes: 070363NC 070363NO 070463NC 070463NO 070563NC 070563NO

top next
Accessories and spare parts for solenoid valves with low absorption coils - Solenoid pilot valves with built-in low absorption electric coil

Accessories and spare parts for solenoid valves with low absorption coils - Solenoid pilot valves with built-in low absorption electric coil

Solenoid pilot valves are small 3-way valves activated by a built-in electric coil able to manage the compressed air or the vacuum for piloting the solenoid valves.
The electric coil of the solenoid pilot valve is fully plasticised plasticised with synthetic resin, tight execution, insulation class F (up to 155 °C) compliant with VDE standards, with 3 mm 2-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650)-C.
Protection degree IP 54; IP 65 for inserted connector.
Allowed tolerance on the voltage nominal value: ±10%
Allowed tolerance on the frequency value: ±5%
Room temperature: from -10 to +45 °C
Fluid temperature: from -10 to +95 °C
Electric power: from 1 to 2 W
Product codes: 0007301 0007302 0007303 0007304 0007305 0007306 0007307 0007308 0007309 0007310 0007311 0015297

4.48
top next
Accessories and spare parts for solenoid valves with low absorption coils - Valves to be interfaced with the solenoid pilot valves

Accessories and spare parts for solenoid valves with low absorption coils - Valves to be interfaced with the solenoid pilot valves

Connectors are essential elements for bringing electricity to solenoid pilot valves with built-in low absorption coil.
They are available in the plug version, with a LED for signalling the presence of voltage and, upon request, with anti-interference circuits, with protection against overvoltage and polarity inversion.
All connectors provide full protection against water jets, according to EN 60529 (protection class IP 65), when correctly installed.
They also meet VDE 0110-1 /89 standard, working voltage up to 250 V, overvoltage category II, degree of use 3 regarding insulation class.
In all contacts, a snap joint between contact holders and the external protection guarantees a safe locking and easy assembly.
A safe locking is essential for guaranteeing the operator full protection when handling the connector.
The contact holder can be easily extracted from its casing simply using a screwdriver.
This operation also allows orienting the earthing contact in the desired direction
Product codes: 0015154 0015157

4.49
top next
Accessories and spare parts for solenoid valves with low absorption coils - Sealing kit for 3-way solenoid valves

Accessories and spare parts for solenoid valves with low absorption coils - Sealing kit for 3-way solenoid valves

Sealing kits are composed of a membrane, shutters and standard O-rings installed on our compressed air and vacuum 3-way valves and solenoid valves.
In presence of very hot fluids (up to 250 °C) or corrosive fluids, we can supply sealing kits in special compounds. Please contact our technical department.
Product codes: 0007271 0007272 0007290 0007273 0007291 0007274 0007292 0007275 0007276 0007293 0007277 0007294 0007278 0007295 0007279 0007280

4.50
top next
Accessories and spare parts for solenoid valves with low absorption coils - 3-Way solenoid valve pilot membrane

Accessories and spare parts for solenoid valves with low absorption coils - 3-Way solenoid valve pilot membrane

Sealing kits are composed of a membrane, shutters and standard O-rings installed on our compressed air and vacuum 3-way valves and solenoid valves.
In presence of very hot fluids (up to 250 °C) or corrosive fluids, we can supply sealing kits in special compounds. Please contact our technical department.
Product codes: 0007104 0007105 0007229 0007230 0007296 0007231 0007297 0007232 0007298

4.50
top next
